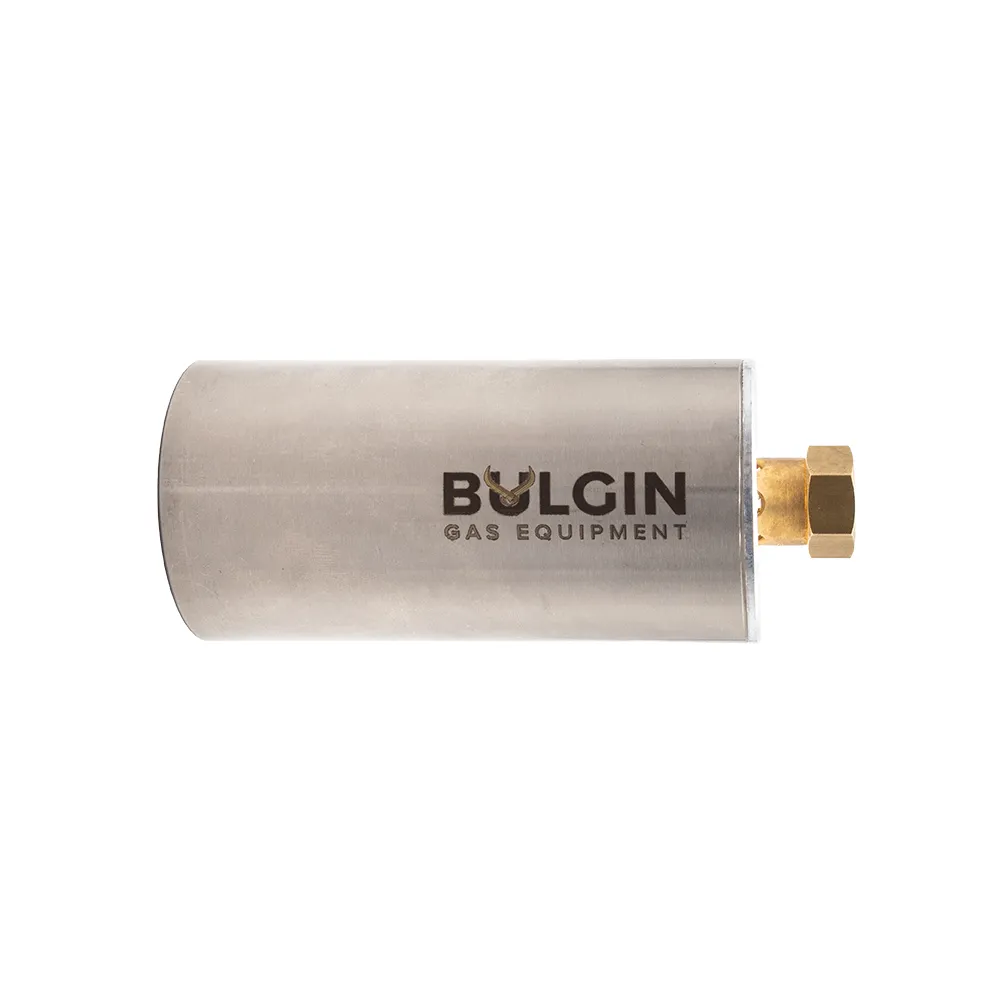

Air Propane Power Burner 62mm M20 x 1 Female Aluminium Base

The Bulgin Air–Propane Power Burner – 62mm is a professional-grade, high-output heating burner designed for demanding trade and industrial applications requiring rapid and even heat transfer. Delivering up to 315 MJ/h of heat output, the 62mm burner provides substantial heating capacity while offering a more compact and lower-consumption alternative to the larger 76mm Power Burner.

Designed for use with propane / LPG air-mixed systems, the burner produces a strong, stable broad flame suitable for preheating large workpieces, fabrication, manufacturing processes, roofing, drying and general industrial heating.

This model features a robust aluminium burner base with an M20 × 1 female connection, making it suitable for compatible torch assemblies, manifold systems and purpose-built industrial heating equipment.

Key Features

• Professional-grade 62mm air–propane Power Burner
• High-output 315 MJ/h heating capacity
• Strong, stable broad flame for rapid and even heating
• M20 × 1 female burner connection
• Robust aluminium burner base
• Designed for propane / LPG air-mixed heating systems
• Suitable for single-burner and manifold applications
• High heat output for larger workpieces and surface areas
• Robust and serviceable construction
• Suitable for professional workshop, field and industrial applications

Typical Applications

• Steel preheating prior to welding
• Heavy fabrication and maintenance
• Heat shrinking
• Roofing and waterproofing
• Bitumen membrane installation
• Manufacturing and production processes
• Drying and surface preparation
• Multi-burner manifold systems
• Large-area heating
• Custom industrial heating equipment
• General high-output industrial heating

Designed for Professional Performance

The 62mm Bulgin Power Burner provides substantial thermal output for applications where smaller conventional air–propane burners may not provide sufficient heating capacity or coverage.

Its 62mm burner head produces a broad flame pattern designed to distribute heat across a larger area, making it particularly suited to preheating steel components, industrial processing and applications requiring rapid heat input.

For specialised manufacturing and heating processes, the 62mm Power Burner can also be incorporated into a multi-burner manifold arrangement, allowing multiple burners to distribute heat across a larger or specifically defined work area.

Technical Specifications

*LPG consumption of 6.4 kg/h is based on operation at 200 kPa.

Power Burner Range Comparison

The 62mm model forms part of the broader Bulgin Air–Propane Power Burner range, allowing burner size and heat output to be selected according to the application.

*LPG consumption at 200 kPa operating pressure.

Why Choose the 62mm Power Burner?

The 62mm Power Burner provides a significant step up in heating capacity from the smaller models in the Bulgin Power Burner range. With a heat output of 315 MJ/h, it is well suited to demanding applications requiring substantial heat input and broad flame coverage without stepping up to the larger 76mm burner.

The 62mm burner is particularly suited where:

• A broad heating area is required
• Larger steel components need to be preheated
• Faster heat input can improve productivity
• High-output heating is required for manufacturing processes
• Multiple burners are being incorporated into a purpose-built manifold system

Connection & Compatibility

This version of the 62mm Power Burner features an M20 × 1 female threaded connection incorporated into the aluminium burner base.

The connection allows the burner to be incorporated into compatible torch assemblies, manifolds and custom heating equipment featuring a corresponding M20 × 1 male connection.

This configuration is particularly suited to replacement applications and purpose-built heating systems where an M20 × 1 connection is required.

Always confirm the thread connection, operating pressure, gas flow capacity and equipment compatibility before installation.

LPG Supply Requirements

With LPG consumption of approximately 6.4 kg/h at 200 kPa, the 62mm Power Burner requires a suitably sized LPG supply capable of maintaining the required vapour withdrawal rate.

Cylinder size and LPG supply capacity become increasingly important during prolonged operation. An undersized cylinder or insufficient LPG supply can result in cylinder frosting, falling supply pressure and reduced burner performance.

When the burner is incorporated into a multi-burner manifold system, the LPG supply, regulator, hose and manifold should be sized according to the combined gas consumption of all burners operating simultaneously.

Note: The above information represents typical operating performance only. Actual performance may vary depending on operating pressure, LPG supply, equipment configuration, environmental conditions and operator technique.

Built for Professional Heating Applications

The Bulgin 62mm Air–Propane Power Burner combines a substantial 315 MJ/h heat output, broad flame coverage and a robust M20 × 1 female aluminium base in a professional heating component designed for demanding industrial applications.

Whether installed as a single high-output burner or incorporated into a purpose-built manifold or industrial heating system, the 62mm Power Burner provides a robust and flexible solution where rapid, high-capacity heating is required.
