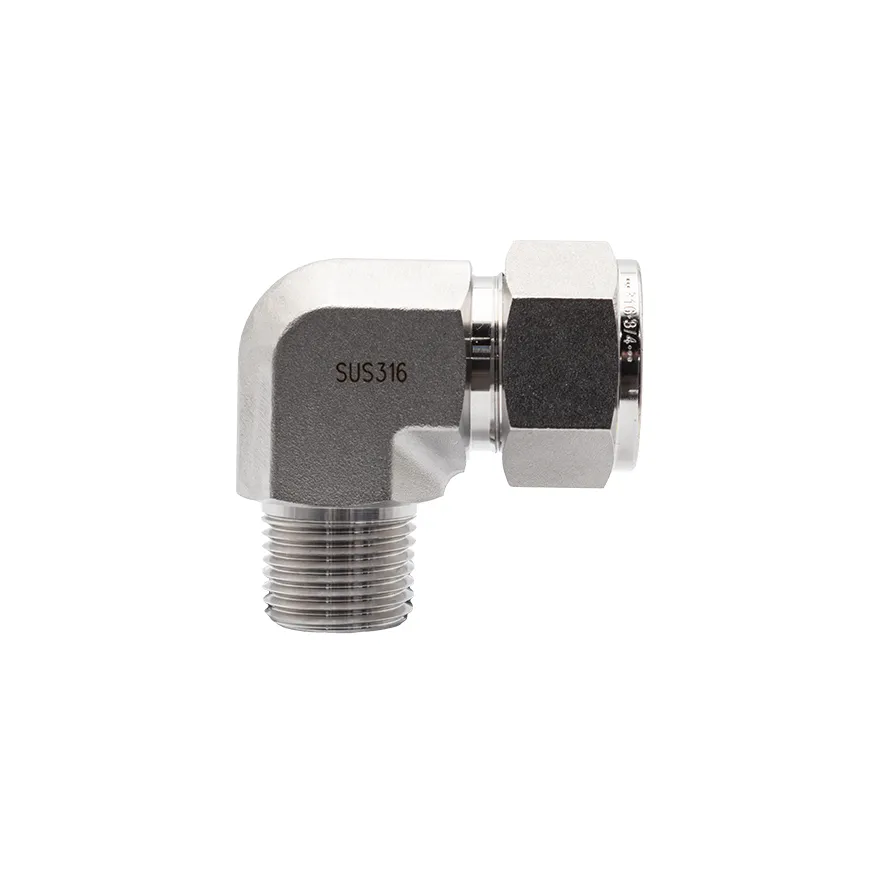

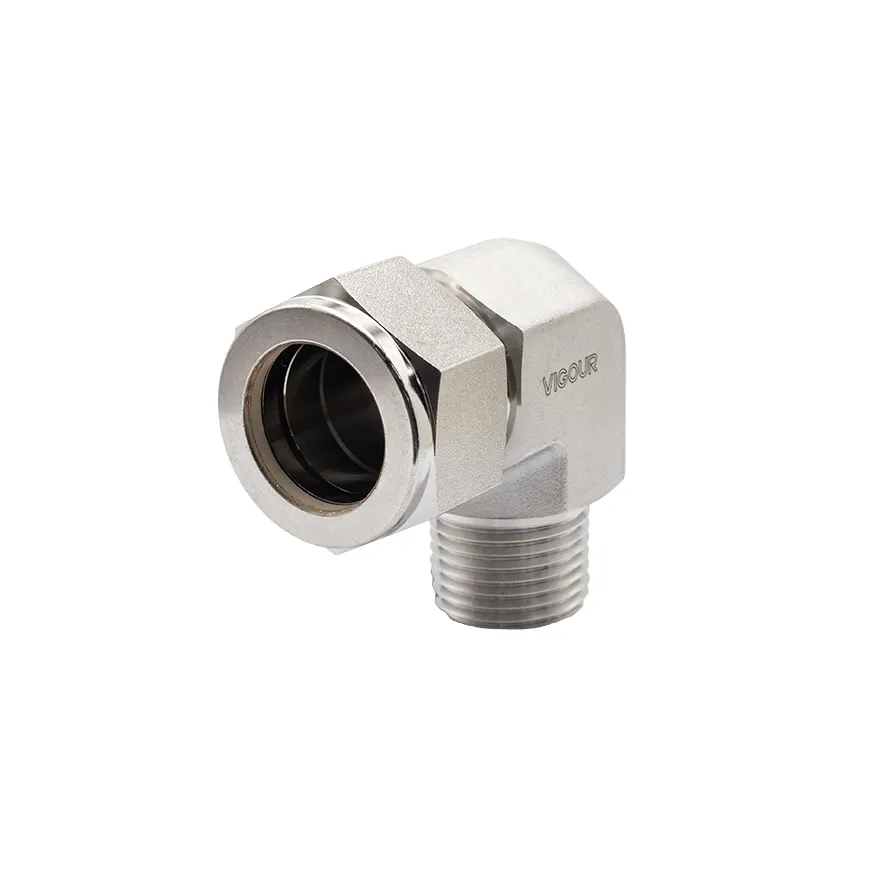

The Bulgin® SS316 Male Elbow is a stainless steel fitting designed to provide a 90° connection between 3/4" tubing and a 1/2" NPT female port in gas equipment, instrumentation and pipework.
Manufactured from 316 stainless steel, the elbow combines a 1/2" NPT male threaded connection with a 3/4" compression, providing a durable and corrosion-resistant solution for changing connection direction in gas systems.
Key Features
316 stainless steel construction
1/2" NPT male threaded connection
3/4" tube connection
Designed for 3/4" outside diameter tubing
90° male elbow configuration
Compact design for installations with limited space
Durable, corrosion-resistant construction
Suitable for compatible gas and instrumentation systems
Ideal for manifolds, control panels and custom gas assemblies
Technical Specifications
| Specification | Value |
|---|
| Product Type | Male Tube Elbow |
| Material | 316 Stainless Steel |
| Configuration | 90° Elbow |
| Thread Connection | 1/2" NPT Male |
| Tube Connection | 3/4" Compression |
| Tube Size | 3/4" Outside Diameter |
| Thread Type | NPT |
| Application | Gas & Instrumentation Connections |
Note: Confirm the tube connection type, tubing material, outside diameter, wall thickness, operating pressure and gas compatibility before installation. Use an appropriate thread sealing method for the NPT connection and follow the manufacturer's tube fitting assembly instructions.
