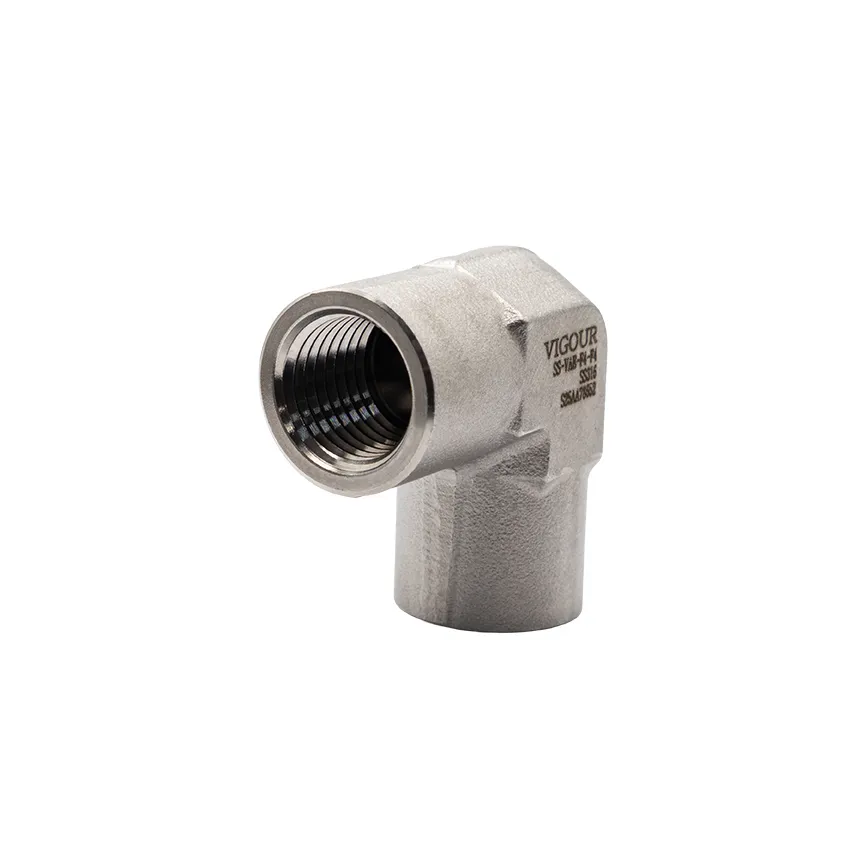

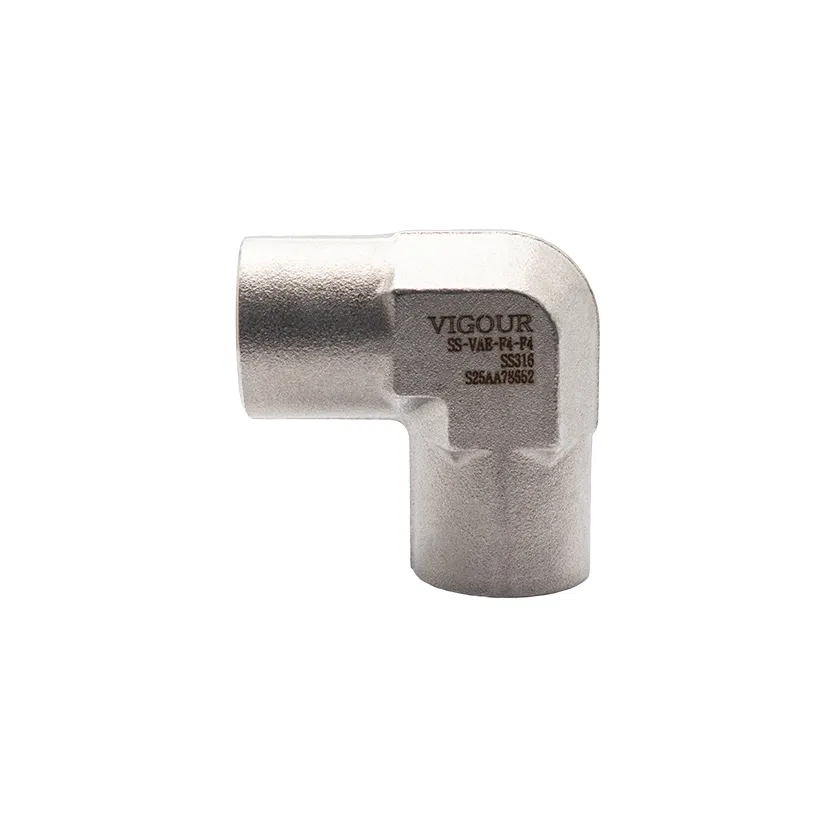

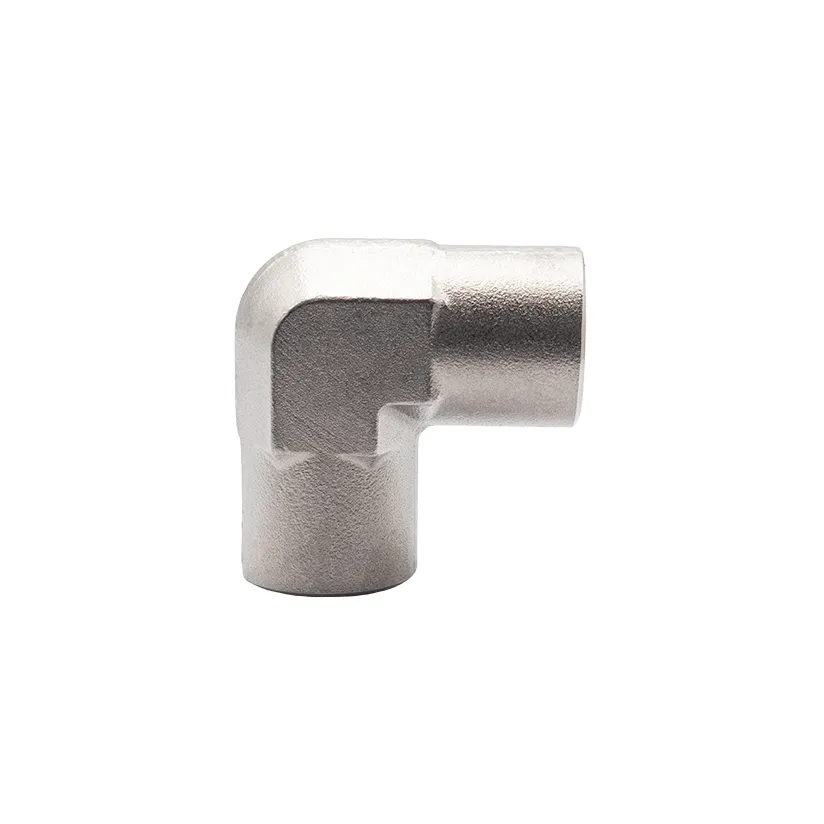

The Bulgin® SS316 Elbow is a compact stainless steel fitting designed to provide a 90° connection between compatible threaded components in gas equipment, instrumentation and pipework.
Manufactured from 316 stainless steel, the elbow features two 1/4" NPT female connections, providing a durable and corrosion-resistant solution for changing connection direction in gas systems.
Key Features
316 stainless steel construction
1/4" NPT female × 1/4" NPT female
90° elbow configuration
Compact design for installations with limited space
Durable, corrosion-resistant construction
Suitable for compatible gas and instrumentation systems
Ideal for manifolds, control panels and custom gas assemblies
Technical Specifications
| Specification | Value |
|---|
| Product Type | Elbow Adaptor |
| Material | 316 Stainless Steel |
| Configuration | 90° Elbow |
| Connection 1 | 1/4" NPT Female |
| Connection 2 | 1/4" NPT Female |
| Thread Type | NPT |
| Application | Gas & Instrumentation Connections |
Note: Confirm thread compatibility, operating pressure and gas suitability before installation. Use an appropriate thread sealing method for the application.
