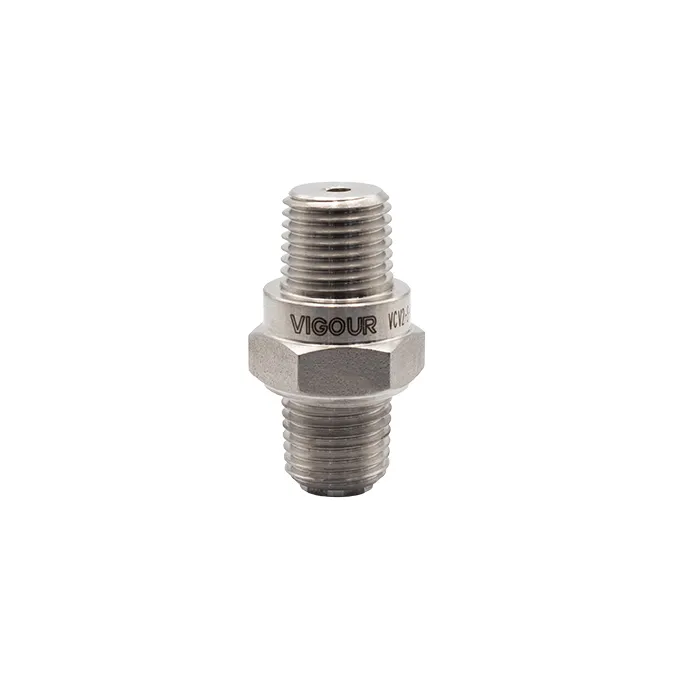

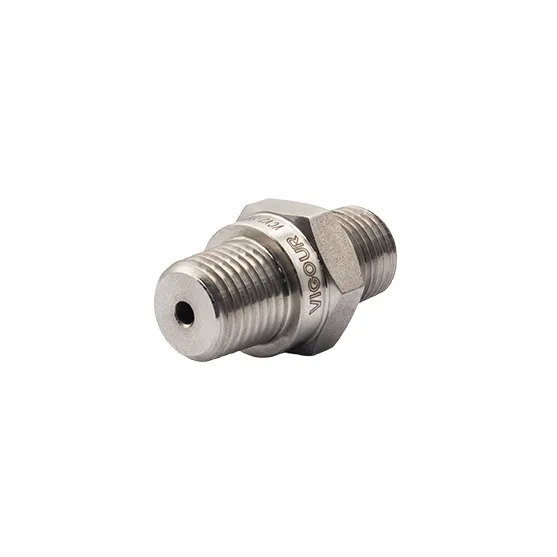

SS316 Check Valve EPDM Pressure Rated: 413 Bar 1/4" NPT Male x Male

The Bulgin SS316 Check Valve is a compact, high-pressure non-return valve designed to prevent reverse gas flow in instrumentation panels, gas control systems, manifolds and other professional gas applications.

This variant features a 316 stainless steel body, EPDM sealing material and 1/4" NPT male inlet × 1/4" NPT male outlet connections, with a maximum working pressure of 413 bar (41,300 kPa).

The check valve range is available in different materials, seal options and connection configurations, allowing the appropriate valve to be selected according to the gas service, operating conditions and system design. The broader VCV2 platform supports configurable body materials, O-ring materials and connection arrangements.

Key Features

• Compact high-pressure check valve
• Prevents reverse gas flow through the system
• 413 bar (41,300 kPa) maximum working pressure
• 316 stainless steel construction
• EPDM sealing material
• 1/4" NPT Male × 1/4" NPT Male connections
• Robust construction for professional gas systems
• Compact design for integration into panels and equipment
• Suitable for instrumentation, manifold and gas control applications
• Available in different configurations to suit application requirements

Typical Applications

• High-pressure gas systems
• Instrumentation panels
• Gas control panels
• Gas manifolds
• Pressure regulation systems
• Process gas equipment
• Laboratory and analytical gas systems
• Industrial gas installations
• OEM gas equipment and assemblies

How a Check Valve Works

A check valve is designed to allow gas to flow in one direction while restricting reverse flow.

During normal operation, forward pressure acts on the internal valve mechanism and opens the flow path. If the pressure differential falls or downstream pressure attempts to flow back towards the supply, the valve closes to help prevent reverse gas flow.

This makes check valves an important component in gas systems where maintaining the intended direction of flow and preventing unwanted backflow is required.

Technical Specifications

Available Configurations

The Bulgin Check Valve range is available in multiple configurations to suit different equipment and gas system requirements.

Depending on the selected model, options may include:

• Different body materials
• Different seal materials
• Alternative inlet and outlet connections
• Male, female and tube fitting configurations
• Configurations selected for the intended gas service

The VCV2 range includes 316L stainless steel and chrome-plated brass body options, along with EPDM, Viton® (FKM) and Kalrez® (FFKM) sealing options and multiple connection arrangements.

This allows system designers, technicians and OEMs to select a check valve configuration appropriate for the equipment and intended gas service.

Material & Gas Compatibility

The 316 stainless steel body provides a robust material option for demanding high-pressure gas system applications, while this particular variant uses an EPDM seal.

Selection of the appropriate check valve should consider the complete operating environment, including gas composition, pressure, temperature, seal compatibility and connection requirements.

Note: This product page describes the 413 bar, SS316, EPDM, 1/4" NPT Male × Male variant. Other Bulgin Check Valve configurations are available. Always confirm the valve pressure rating, body material, seal material, connection type and compatibility with the intended gas service before installation.

Designed for Professional Gas Systems

The Bulgin SS316 Check Valve – EPDM, 413 Bar, 1/4" NPT Male × Male provides a compact and robust solution for preventing reverse flow in professional high-pressure gas equipment.

With a maximum working pressure of 413 bar (41,300 kPa) and multiple configurations available across the range, Bulgin Check Valves can be selected for integration into instrumentation panels, manifolds, pressure control assemblies and purpose-built gas systems.
