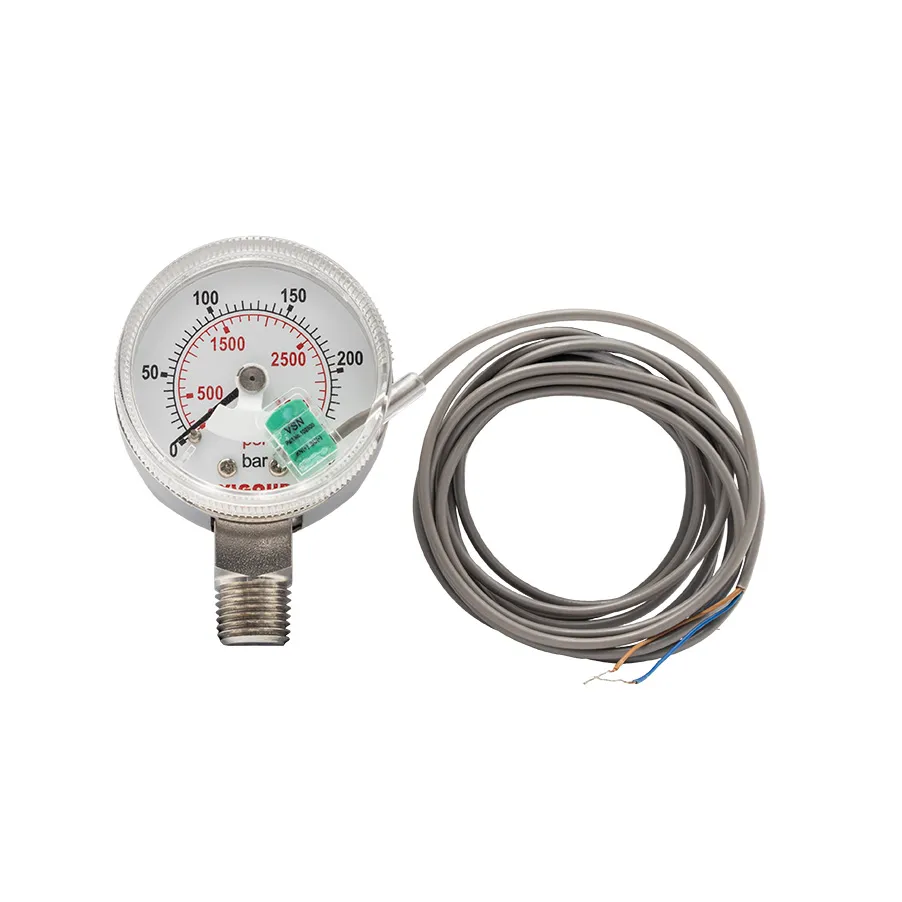

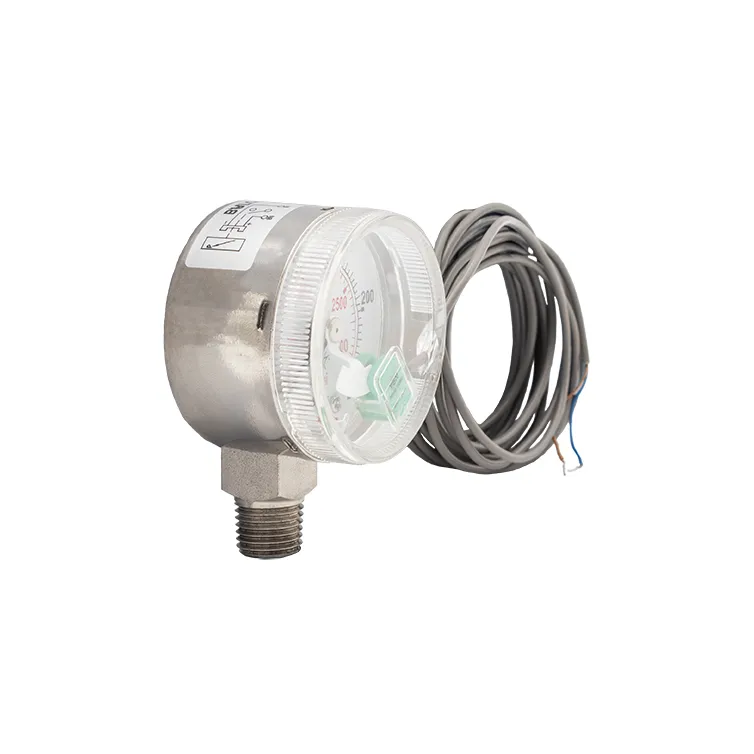

Stainless Steel Contact Pressure Gauges 0-250bar

The Bulgin® Stainless Steel Contact Pressure Gauge is designed for pressure monitoring and electrical alarm signalling in industrial, laboratory and specialty gas systems.

Manufactured by VIGOUR, the VG20SE Series combines a conventional pressure gauge with an integrated inductive electrical contact, allowing operators to monitor gas pressure visually while providing an electrical signal when a preset pressure threshold is reached.

Featuring a 316L stainless steel body, adjustable switching point and NAMUR-compatible sensor, the gauge is suitable for monitoring inert, combustible, oxidising and corrosive gases and gas mixtures.

The 0–250 bar (0–25,000 kPa) pressure range makes it suitable for monitoring high-pressure gas supplies, including cylinder manifolds, gas distribution panels and pressure control assemblies.

Key Features

• 0–250 bar (0–25,000 kPa) pressure range

• 316L stainless steel body construction

• Integrated inductive contact for electrical pressure monitoring

• Adjustable switching point from 0–24% of the gauge scale

• Normally closed (NC) switching function

• NAMUR-compatible electrical output

• Dual pressure scale in bar and psi

• ±2.5% gauge accuracy

• Suitable for inert, combustible, oxidising and corrosive gases and gas mixtures

• Tested for use with oxygen

• Compact 50mm (2") gauge diameter

• 1/4" NPT male bottom connection

• Supplied with a 0.5m electrical lead

• Suitable for integration with compatible gas alarm and monitoring systems

Integrated Pressure Monitoring & Alarm Signalling

The VG20SE Series combines mechanical pressure indication with electrical contact monitoring, allowing gas supply pressure to be monitored locally and remotely.

The integrated inductive contact provides an electrical switching signal when the pressure reaches the configured threshold.

When connected to a compatible alarm or monitoring system, the gauge can support:

• Low gas supply pressure warnings

• Gas cylinder or cylinder pack depletion monitoring

• Gas manifold pressure monitoring

• Pressure threshold signalling

• Visual and audible alarm activation through external alarm equipment

The gauge uses a NAMUR-compatible sensor, allowing integration with suitable monitoring and control equipment.

Adjustable Switching Point

The integrated contact provides an adjustable pressure switching point, allowing the gauge to be configured for the required monitoring application.

The manufacturer specifies a switching point adjustment range of 0–24% of the gauge scale.

The normally closed (NC) switching configuration provides a contact signal suitable for compatible monitoring systems.

Typical Applications

• High-pressure gas cylinder monitoring

• Cylinder pack and manifold pressure monitoring

• Industrial gas distribution panels

• Laboratory and specialty gas systems

• Gas supply shortage warning systems

• Pressure control and regulation assemblies

• Gas alarm and monitoring systems

• Industrial process gas installations

Technical Specifications

Designed for Gas Supply Monitoring

The Bulgin® Stainless Steel Contact Pressure Gauge provides a practical solution for applications requiring both local pressure indication and electrical pressure monitoring.

By combining a mechanical pressure gauge with an inductive switching contact, the VG20SE Series can be integrated into gas supply monitoring systems to provide early warning of pressure changes and potential gas shortages.

Its stainless steel construction, NAMUR-compatible output and adjustable switching point make it suitable for industrial gas distribution, specialty gas systems and cylinder manifold installations.

Note: The electrical contact requires connection to a compatible NAMUR monitoring or alarm system. Confirm the required switching point, electrical interface, operating pressure and gas compatibility before installation. For oxygen applications, ensure all connected components and installation procedures are suitable for oxygen service.
