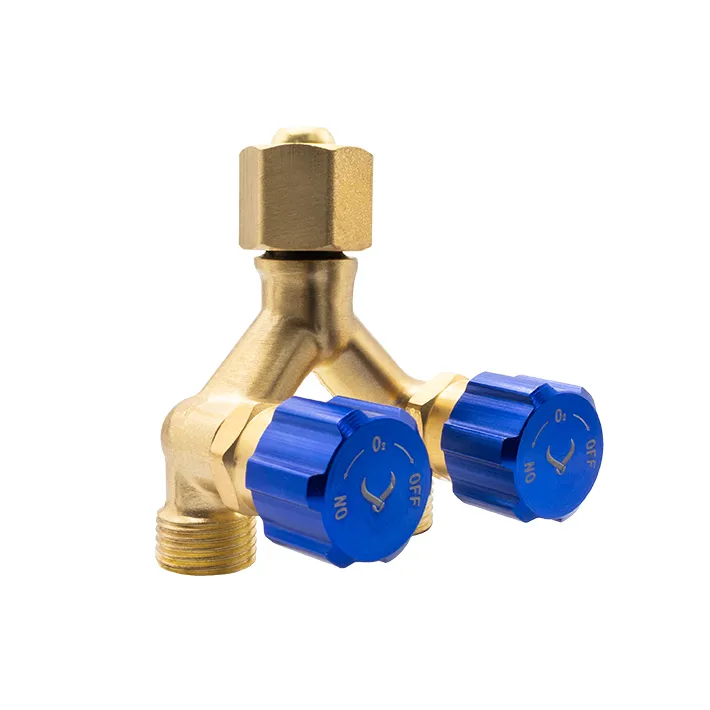

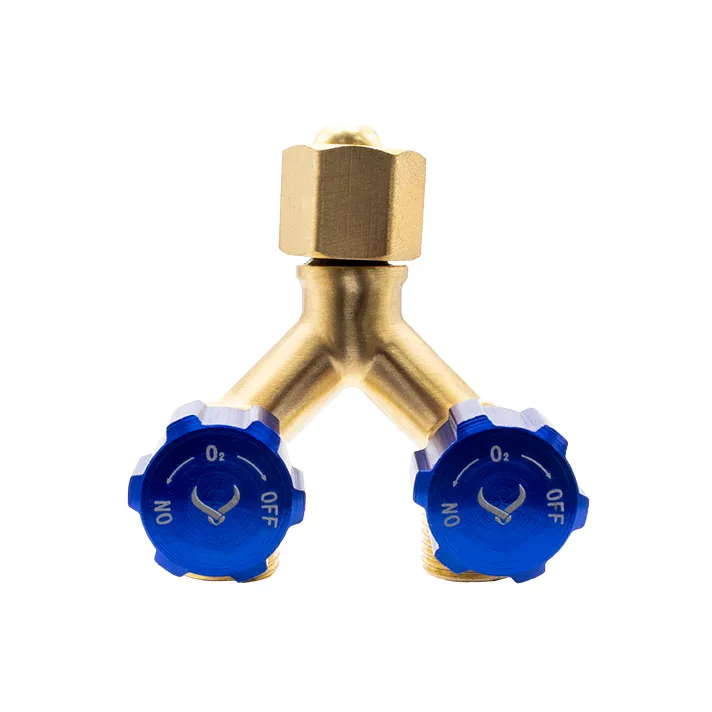

The Bulgin® Brass Y Piece Adaptor with Valves is designed to split a single gas supply connection into two independently controlled outlets for compatible gas equipment and hose assemblies.
Manufactured from brass, the adaptor features a 5/8"-18 UNF right-hand female inlet and two 5/8"-18 UNF right-hand male outlets, each fitted with an individual control valve for convenient gas flow management.
Key Features
Durable brass construction
5/8"-18 UNF RH female inlet
2 × 5/8"-18 UNF RH male outlets
Individual control valves for each outlet
Allows two compatible gas connections from a single supply
Suitable for gas hose connections and distribution applications
Compact Y-piece configuration
Technical Specifications
| Specification | Value |
|---|
| Product Type | Y Piece Adaptor with Valves |
| Material | Brass |
| Inlet Connection | 5/8"-18 UNF RH Female |
| Outlet Connections | 2 × 5/8"-18 UNF RH Male |
| Thread Direction | Right-Hand |
| Number of Outlets | 2 |
| Valve Configuration | Individual Outlet Control Valves |
| Application | Gas Hose Connections & Distribution |
Note: Confirm thread compatibility, gas suitability, operating pressure and available supply capacity before installation. Ensure all connections are correctly secured and leak-tested before use.
