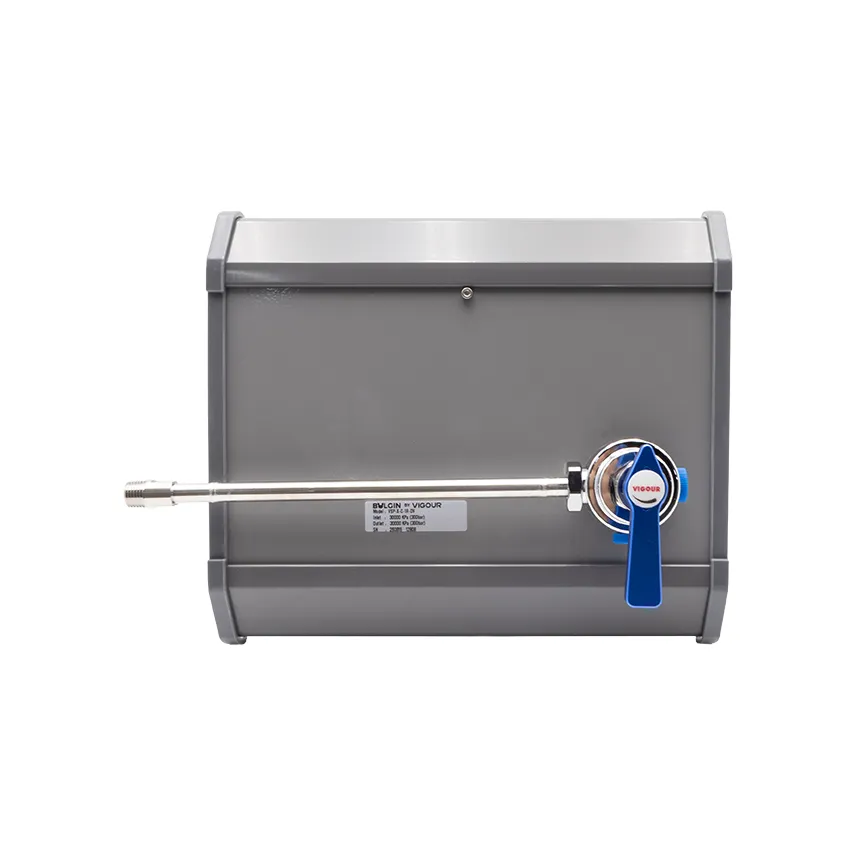

The VIGOUR® Single Right Extension Panel is designed to expand compatible high-purity gas control panels, providing an additional cylinder connection for laboratory, industrial and specialty gas applications.
Featuring a right-hand extension configuration, the panel is designed for integration into modular high-purity gas distribution systems. Its compact arrangement allows additional gas supply connections to be incorporated into an existing panel installation.
With a maximum working pressure of 30,000 kPa (300 bar), the extension panel is suitable for high-pressure gas supply applications when configured with the appropriate materials, seals and compatible equipment.
Key Features
Maximum working pressure of 30,000 kPa (300 bar)
Single right-hand extension configuration
Designed for compatible VIGOUR high-purity gas control panels
Available in chrome-plated brass for inert, reactive, flammable and oxidising gases and mixtures up to Grade 6.0
316L stainless steel body option for corrosive gas applications
Designed for easy installation and panel integration
Suitable for laboratory and industrial high-pressure gas systems
Optional Viton® (FKM) and Kalrez® (FFKM) O-ring materials
Modular Industrial and High-Purity Gas Distribution
The Single Right Extension Panel provides a modular solution for expanding compatible high-purity gas control installations.
Designed to integrate with existing panel arrangements, the extension supports the addition of a gas supply connection without requiring a completely separate control panel assembly.
Its configuration makes it suitable for applications where multiple gas cylinders are connected to a common high-pressure gas supply system.
Material & Gas Compatibility
The extension panel range offers material options to accommodate different gas service requirements.
Chrome-Plated Brass: For compatible inert, reactive, flammable and oxidising gases and mixtures up to Grade 6.0 purity.
316L Stainless Steel: Available for applications involving compatible corrosive gases.
Material and seal selection must be appropriate for the specific gas composition and operating conditions.
Typical Applications
Component testing
Calibration systems
Laboratory pressure control
High-pressure sampling systems
Service and test equipment
Industrial and High-purity gas distribution installations
Technical Specifications
| Specification | Value |
|---|
| Product Type | High Purity Gas Extension Panel |
| Configuration | Single Right Extension |
| Maximum Working Pressure | 30,000 kPa (300 bar) |
| Body Material Options | Chrome-Plated Brass / 316L Stainless Steel |
| Gas Purity Capability | Up to Grade 6.0 (Applicable Configurations) |
| O-Ring Options | Viton® (FKM) / Kalrez® (FFKM) |
| Operating Temperature | −30°C to +74°C |
| Panel Dimensions | 251 × 221 mm |
| Weight | 1.2 kg |
| Application | Industrial and High-Purity Gas Panel Expansion |
Designed for High-Purity Gas Systems
The VIGOUR Single Right Extension Panel provides a practical solution for expanding modular high-purity gas installations.
With a 300 bar pressure rating, selectable construction materials and compact panel design, it supports additional cylinder connections in laboratory, testing and industrial gas supply applications.
Note: Confirm compatibility with the existing high-purity gas panel, cylinder connection, gas type and operating conditions before installation. Material and O-ring selection must be appropriate for the intended gas service. The 30,000 kPa maximum working pressure must not exceed the rating of any other component within the assembled system.
