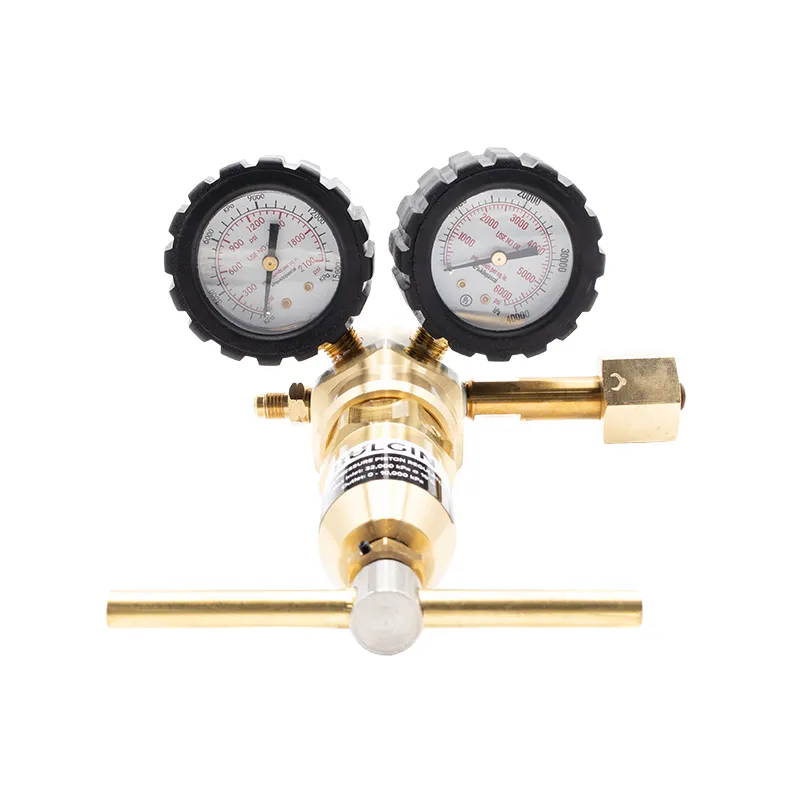

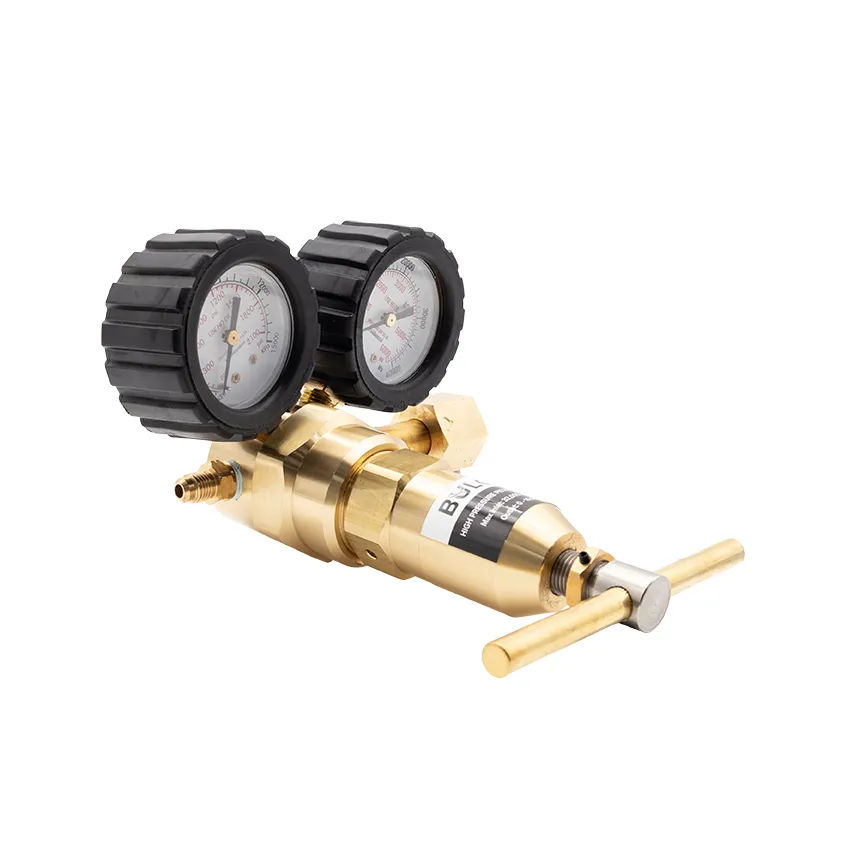

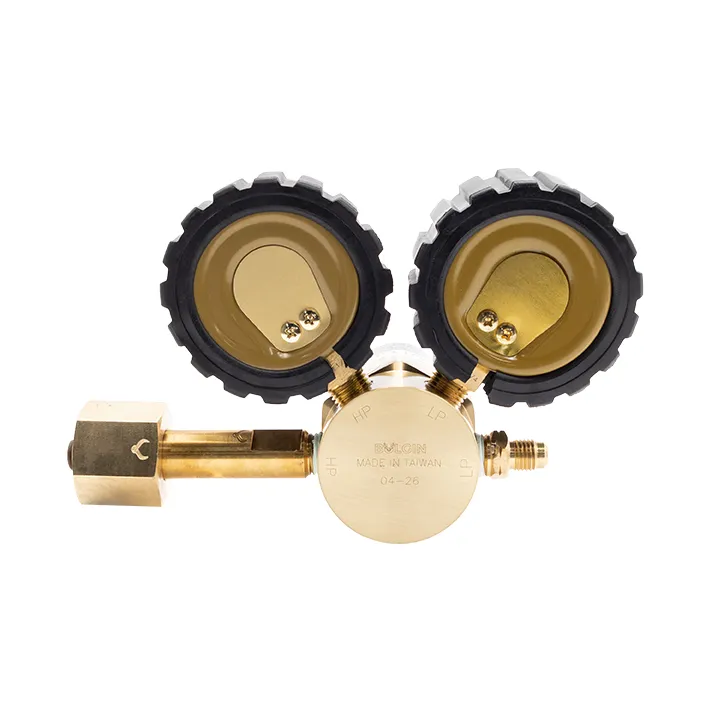

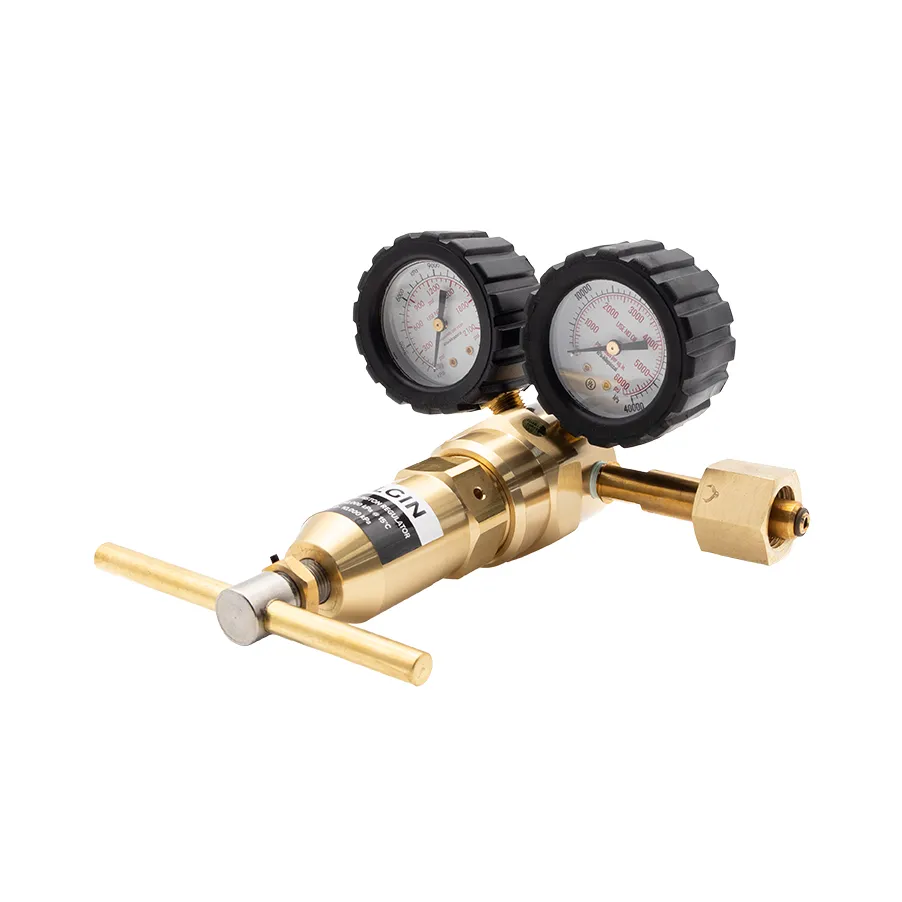

Brass High Pressure Piston Regulator - Nitrogen Max Inlet: 32,000kPa Out: 0-10,000 kPa, Type 50 - 1/4" SAE Flare Male

For Nitrogen fitted with 1/4" SAE Flare Outlet Connection

Heavy-duty brass high-pressure piston regulator designed for stable, accurate pressure control for HVACR Purge and Line Pressure Testing applications. Featuring a robust piston design for the high-pressure applications delivering reliable performance under high inlet pressures with smooth, consistent outlet regulation.

The regulator is fitted with brass Type 50 inlet stem for the appropriate HVACR applications and 1/4" SAE Flare male outlet fittings for connection to common HVACR systems.

Key Features

• High-pressure piston design for stable and precise control
• Durable brass body construction for strength and corrosion resistance
• Smooth adjustment for consistent pressure delivery
• Designed for industrial and high-pressure applications
• Regulators include Gauge protectors for added durability
• 2,000 and 5,000 kPa regulators have encapsulated seat built-in safety relief valve
• 10,000 and 20,000 kPa regulators Include a non-removable T-Handle with an integrated locking mechanism designed to prevent over-pressurisation by limiting unauthorised pressure increases, while still allowing controlled pressure reduction and adjustment.

Technical Specifications

• Body Material: Brass

• Regulator Type: Piston regulator

• Maximum Inlet Pressure: 32,000 kPa

• Outlet Pressure Range: 0–10,000 kPa

• Inlet Fitting: Type 50

• Outlet Fitting: 1/4" SAE Flare

Applications

• Nitrogen Purging (brazing)
• System blanketing / holding charge
• Cleaning / debris blow-out
• Pressure testing - leak and strength testing
• Pressure testing - High-pressure system testing
