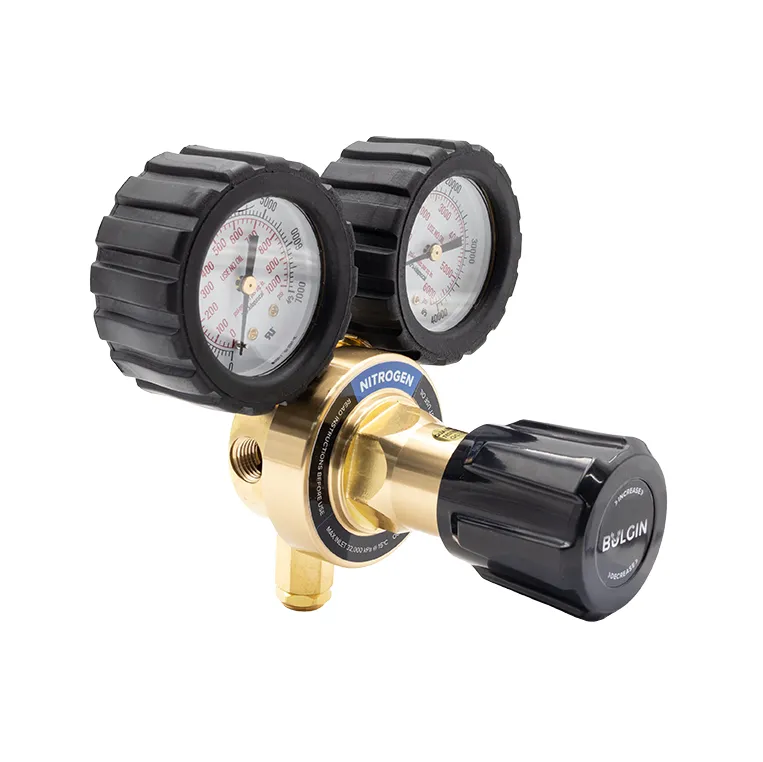

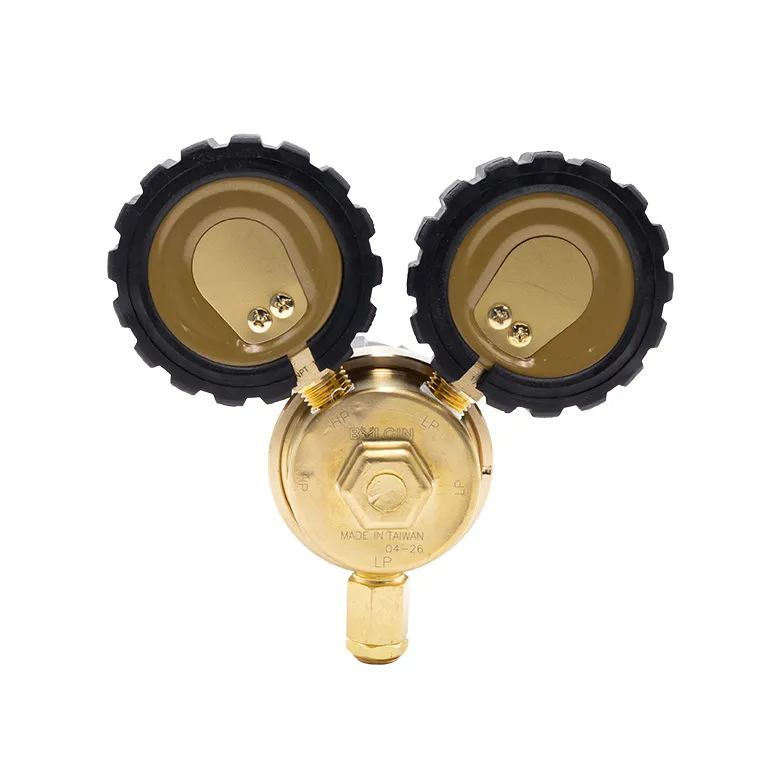

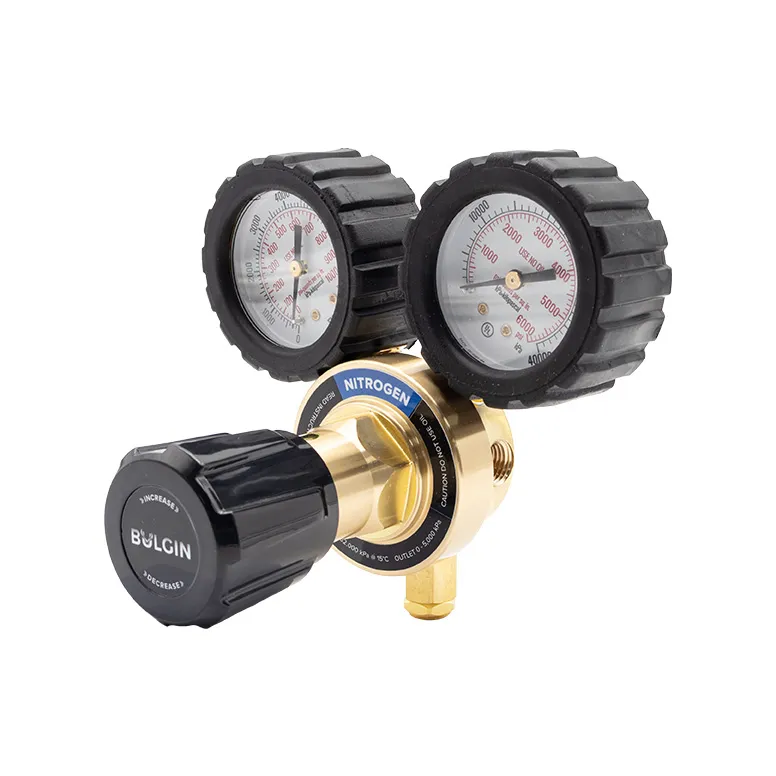

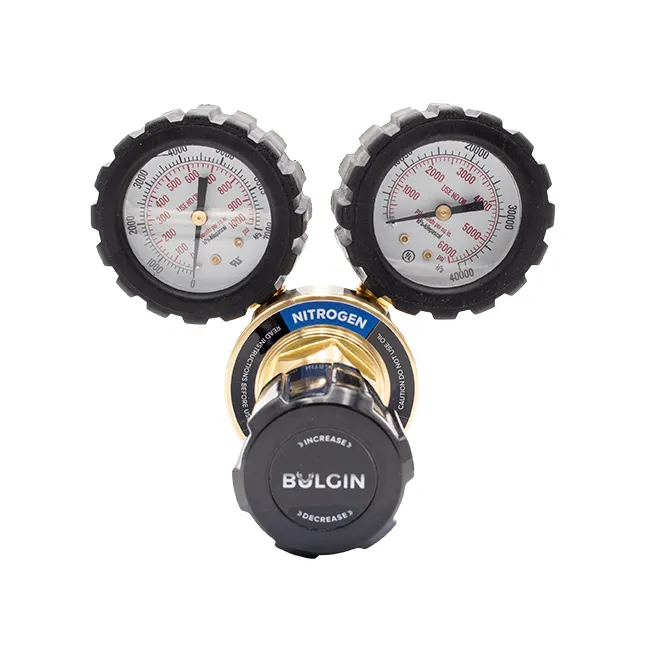

Heavy-duty brass high-pressure piston regulator designed for stable, accurate pressure control in demanding industrial and specialty gas applications. Featuring a robust piston design, it delivers reliable performance under high inlet pressures with smooth, consistent outlet regulation.
The regulator can be fitted with brass inlet stems and is suitable for use with gases compatible with brass, making it a versatile solution across multiple gas types and configurations.
Key Features
-
High-pressure piston design for stable and precise control
-
Durable brass body construction for strength and corrosion resistance
-
Compatible with brass inlet stems
-
Regulators
include Gauge protectors for added durability
Regulators have encapsulated seat and built in safety relief
valve
-
Smooth adjustment for consistent pressure delivery
-
Designed for industrial and high-pressure applications
Technical Specifications
Body Material: Brass
Regulator Type: Piston regulator
Maximum Inlet Pressure: 32,000 kPa
Outlet Pressure Range: 0–5,000 kPa
Application: High-pressure industrial and specialty gas control
Gas Inlet Connection Guide
For gas inlet connection prefix, use the following (example: 640-00002-T10):
| Connection | Gas |
|---|
| T10 (Type 10) | Argon, Oxygen, Helium (up to 20,000 kPa) |
| T30 (Type 30) | Carbon Dioxide |
| T50 (Type 50) | Nitrogen (up to 20,000 kPa) |
| T51 (Type 51) | Inert Gases (up to 31,500 kPa) |
| T60 (Type 60) | Compressed Air |
Note. Non-standard inlet connections, outlet connections and accessories are available on request.
Applications
Industrial gas systems, laboratory use, pressure testing, gas distribution, and specialty gas applications.
