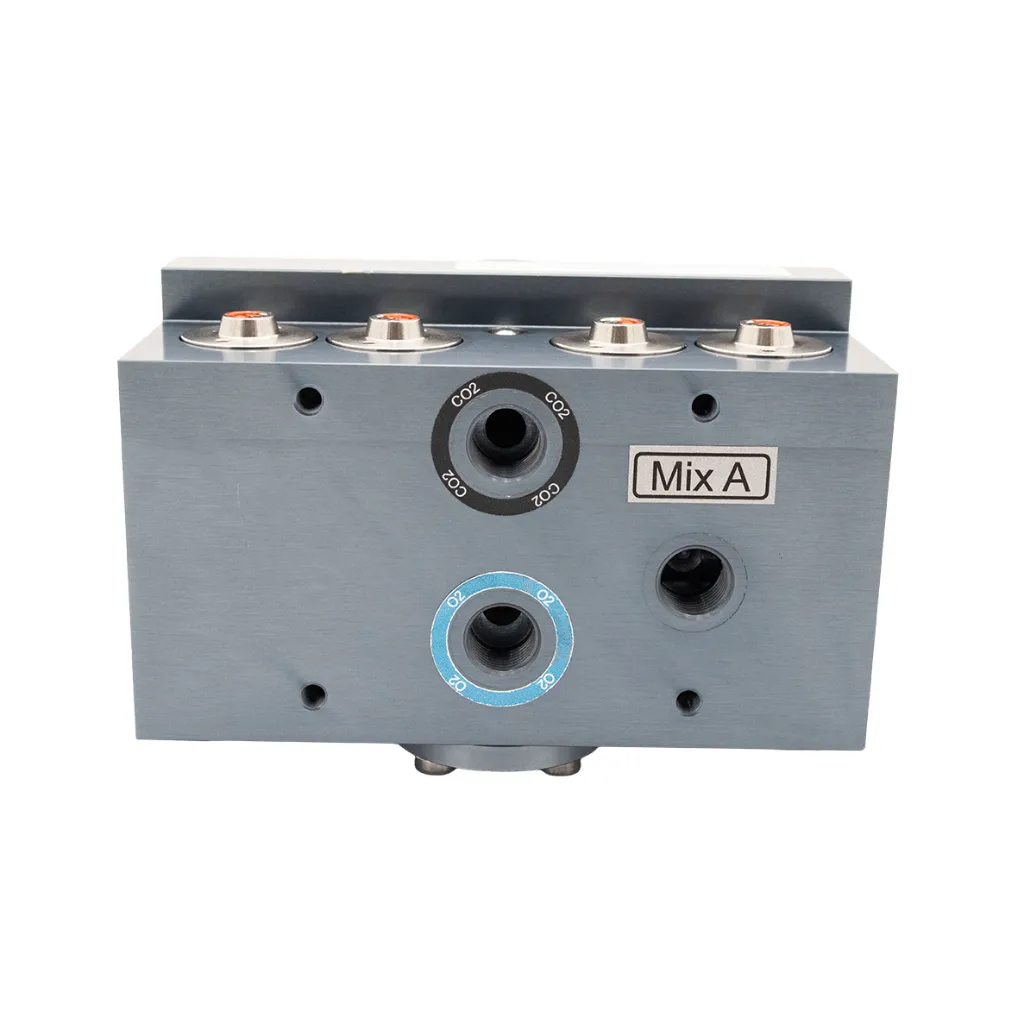

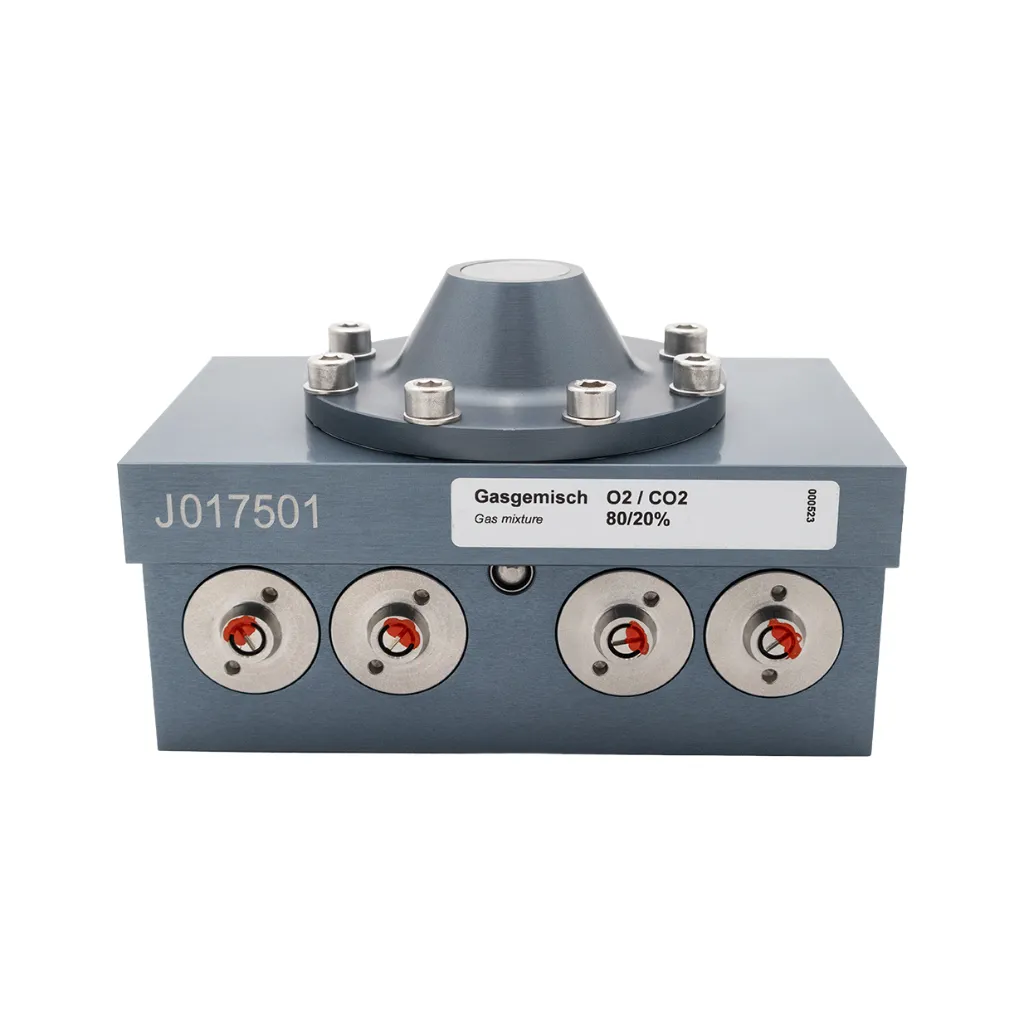

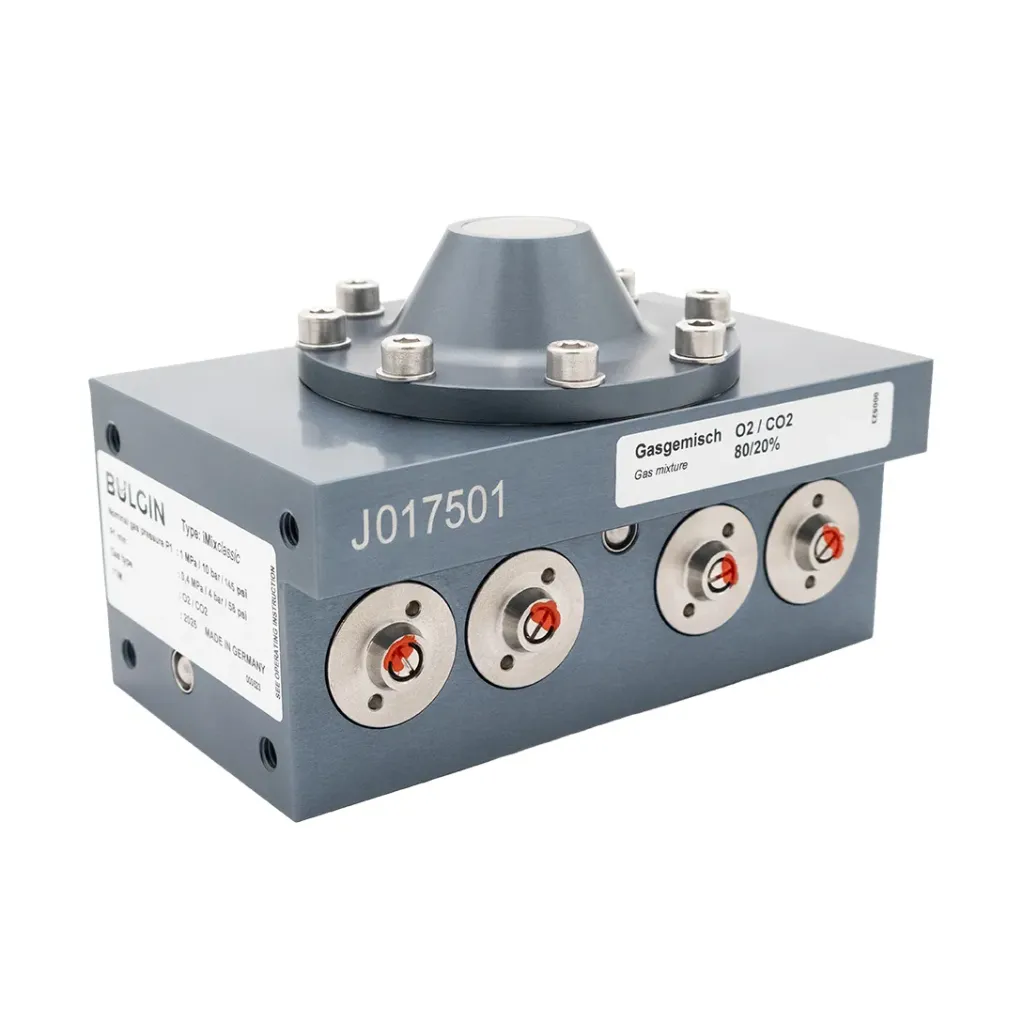

Gas Mixer iMixclassic G1/4 Female

iMixClassic Gas Mixer – Fixed Ratio Diffusion Mixing (with Integrated Pressure Regulator)

The iMixClassic gas mixer is a precision diffusion-mixing gas mixer designed for direct connection at gas tapping points. Featuring an integrated pressure regulator and a single, accurately pre-set mixing ratio, it delivers a constant gas mixture even when gas withdrawal rates fluctuate.

No power supply is required, and for added safety the mixer automatically stops gas mixture production if the gas supply is interrupted, ensuring high process reliability in continuous-use applications.

Housed in a robust anodised aluminium body, the iMixClassic is ideal for industrial, beverage, food and process gas applications requiring a stable, fixed gas mixture.

Key Features

• Diffusion mixing principle for constant, accurate gas mixtures

• One fixed, factory-calibrated mixing ratio (cannot be altered)

• Integrated pressure regulation for stable operation

• No power supply or buffer vessel required

• Automatic shut-off if gas supply is interrupted

• Compact, durable anodised aluminium housing

Technical Specifications

• Mixing accuracy: DIN EN ISO 14175

• Inlet pressure (Pv): min. 4 bar / max. 10 bar

• Flow range: 1 – 800 l/min

• Inlet (carrier gas): G 1/4" Female

• Inlet (additive gas): G 1/4" Female

• Outlet: G 1/4" Female
