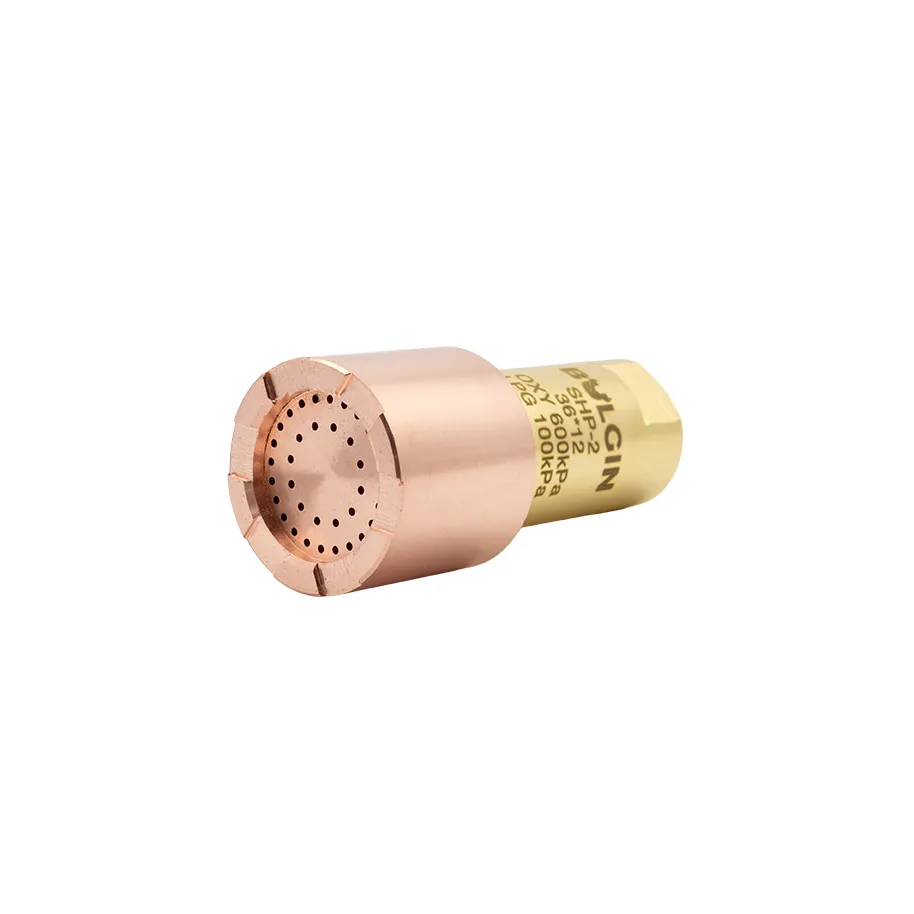

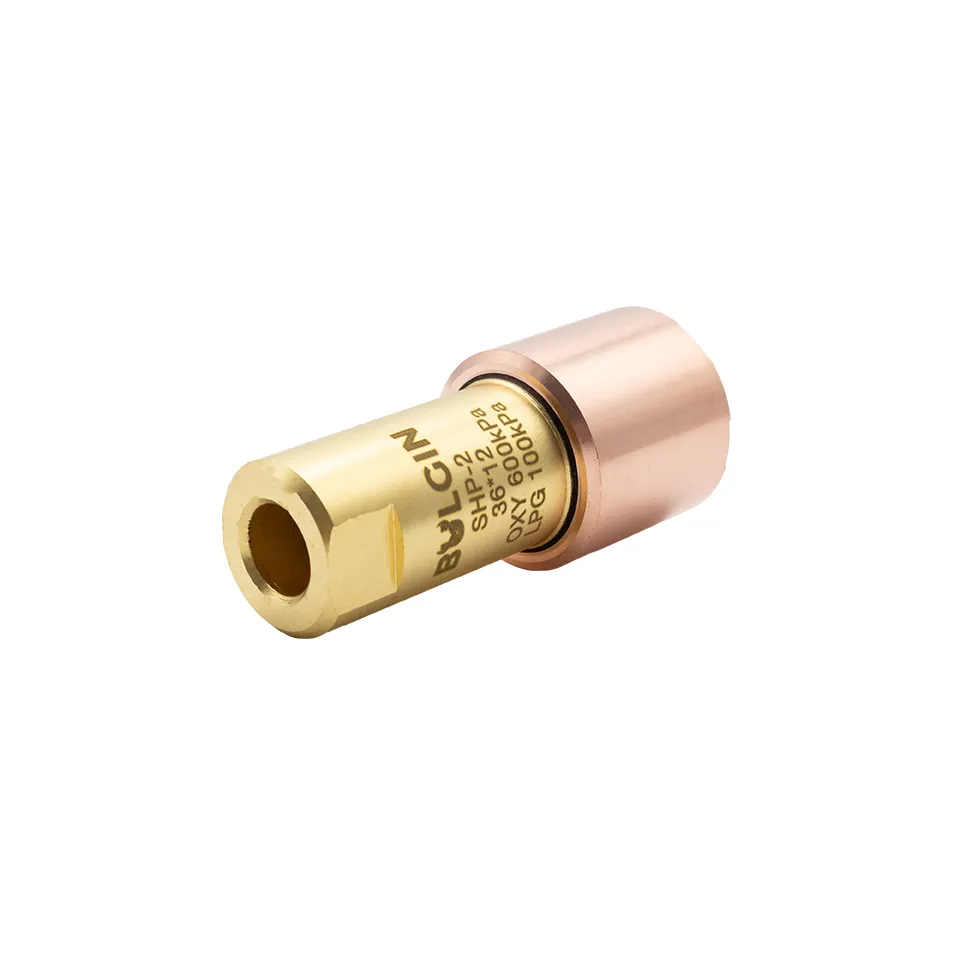

Heating Nozzle - SHP-2# 36*12

Super Heating Tip – Oxy/LPG

The Super Heating Tip is a high-performance oxy-LPG heating nozzle designed for heavy-duty industrial heating applications where rapid heat transfer and maximum heat output are required. Engineered to deliver a powerful and evenly distributed flame pattern, these tips are ideal for large-scale heating, bending, straightening, preheating, shrinking and thermal expansion work.

Available in multiple sizes, the Super Heating Tip range provides progressively higher heat outputs to suit varying workpiece sizes and heating demands. Whether used in fabrication workshops, shipyards, mining operations, maintenance facilities or heavy industry, these tips deliver the performance required for demanding heating applications.

Designed for use with LPG and oxygen, Super Heating Tips offer an economical alternative to acetylene while delivering exceptional heating capacity and operating efficiency.

Key Features

• Heavy-duty oxy-LPG heating tip
• High heat output for rapid workpiece heating
• Multi-port flame design for even heat distribution
• Suitable for LPG, propane and compatible fuel gases
• Ideal for large-scale industrial heating applications
• Durable construction for demanding environments
• Available in four sizes to suit different heating requirements

Performance Guide

Note: The above information represents typical operating ranges only. Actual performance may vary depending on equipment condition, operator technique, tip condition, gas purity, regulator performance and material type.

Recommended Applications

• Heavy plate heating
• Structural steel fabrication
• Heat straightening and distortion correction
• Preheating prior to welding
• Shrink fitting and thermal expansion work
• Rail, mining and construction maintenance
• Shipbuilding and heavy engineering
• Industrial manufacturing processes

Understanding Tip Sizes

The Super Heating Tip range is designed to provide increasing heat output as tip size increases. Smaller sizes are suitable for general fabrication and medium-duty heating applications, while larger sizes provide the high heat input required for substantial workpieces and demanding industrial processes.

Selecting the appropriate tip size helps maximise heating efficiency, minimise processing time and optimise gas consumption for the application.

Operator Guidance

For optimum performance, set oxygen and LPG pressures to the recommended values shown above and adjust the flame to achieve the desired heating profile. Ensure flashback arrestors are fitted to both oxygen and fuel gas lines and that hoses, regulators and equipment are suitable for the required gas flow rates.

Always follow relevant oxy-fuel safety procedures and ensure adequate ventilation when operating heating equipment.

Heat Output Comparison

The Super Heating Tip range delivers heat outputs from approximately 280 MJ/h to 840 MJ/h, making it suitable for applications ranging from general fabrication heating through to large-scale industrial heating operations requiring substantial thermal energy input.
