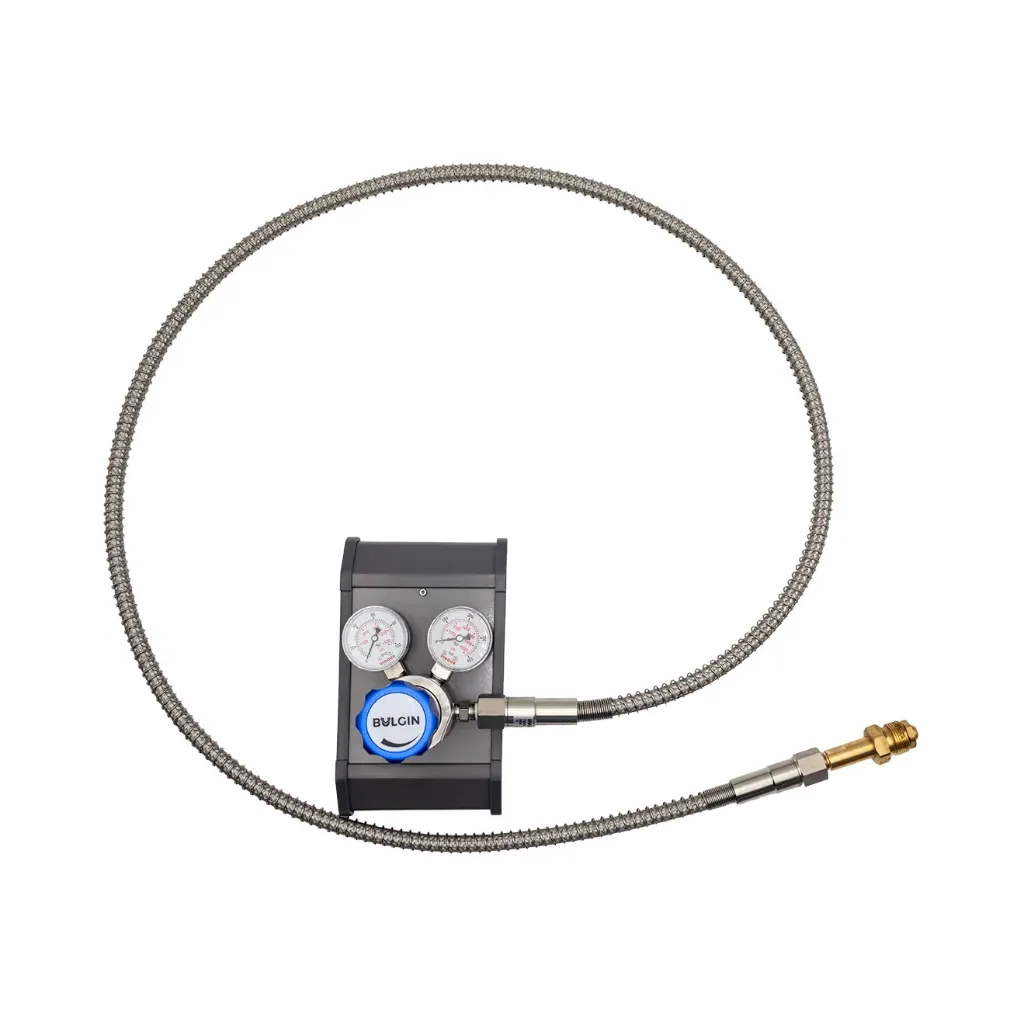

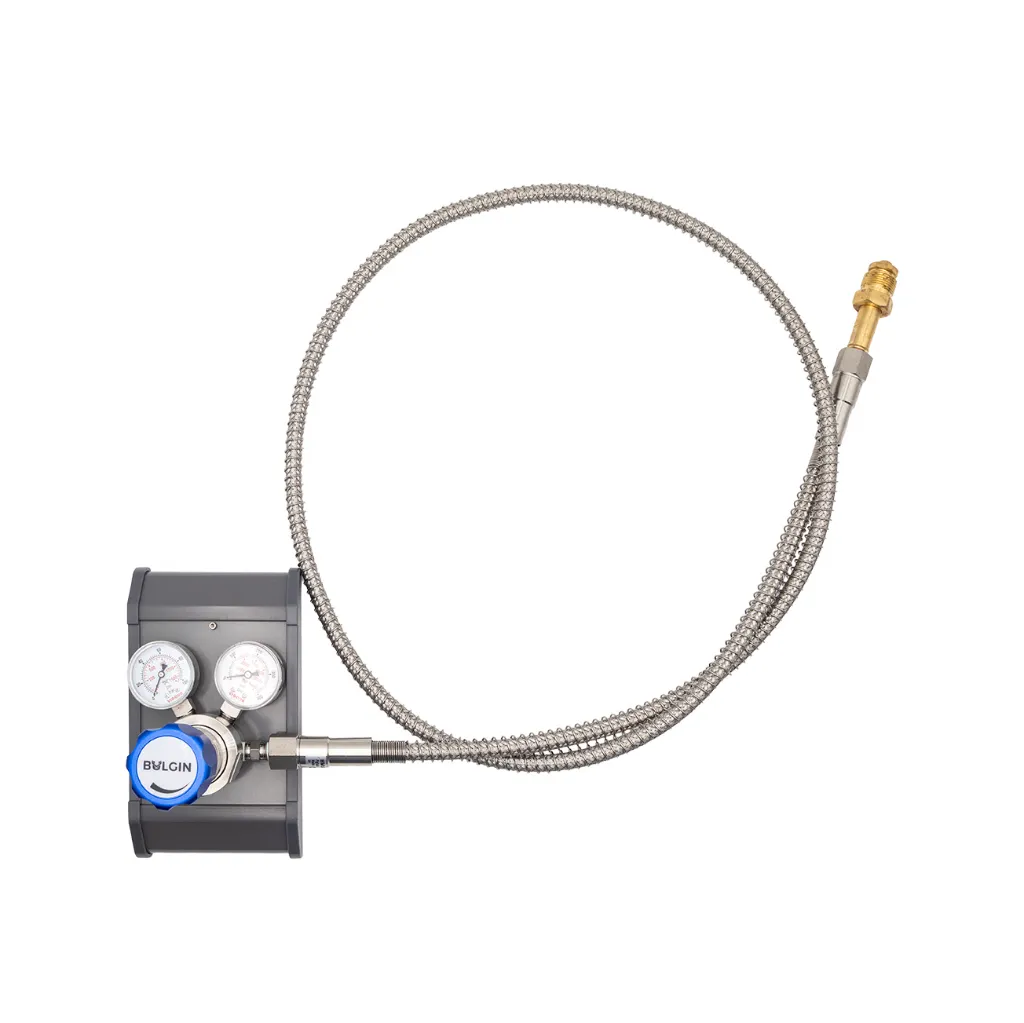

Bulgin® Nitrogen Laser Panel 0-5,000kPa with 2 Metre Lead (Type 51) Outlet: 1/4" NPT Female

High Flow High Pressure Nitrogen Regulator & Wall Mount Panel Package — Laser Cutting Systems

Secure your gas supply and simplify cylinder changeovers with this regulator and wall mount panel package. A high-purity, single-stage piston regulator is permanently secured to a heavy-duty powder-coated aluminium panel — reducing equipment handling and keeping your workflow uninterrupted during cylinder changes.

Optimised for high-power fibre laser cutting (10 kW+) of mild steel, stainless steel, and aluminium; also suited to lab, calibration, and high-pressure gas control applications.

Key Features

• Wall-mounted panel eliminates handling and line stress during cylinder swaps
• 316L stainless steel body with Hastelloy® C276 diaphragm — Grade 6.0 purity
• Encapsulated PCTFE seat and helium-leak-tested for a tight seal
• Integrated 316L stainless steel inlet filter and self-pressure relief device
• Fully oxygen-tested and certified oxygen safe
• Optional inlet purge valve to maintain purity during cylinder changes

Technical Specifications

• Body Material: SS 316L
• Panel: Powder-coated Aluminium
• Regulator Type: Single-stage piston regulator
• Purity:  6.0
• Maximum Inlet Pressure: 30,000 kPa
• Outlet Pressure Range:  0 - 5,000 kPa
• Flow Rate: Up to approx. 330 m3/hr @ 5,000 kPa
• Ports: ¼” NPT (F)
• Seat Material: PCTFE
• O-Ring: Viton® (FKM) or optional Kalrez® (FFKM)
• Filter: SS 316L
• Temperature Range: -30°C to +74°C
• Flow Capacity: Cv 0.15
• Weight: 1.2 kg

Configuration Options

• Lead: 2 m standard, 3 m or custom on request
• Cylinder connection: Type 51 (Type 50 or custom available)
• Purge: Standard direct inlet, or optional inlet purge valve
