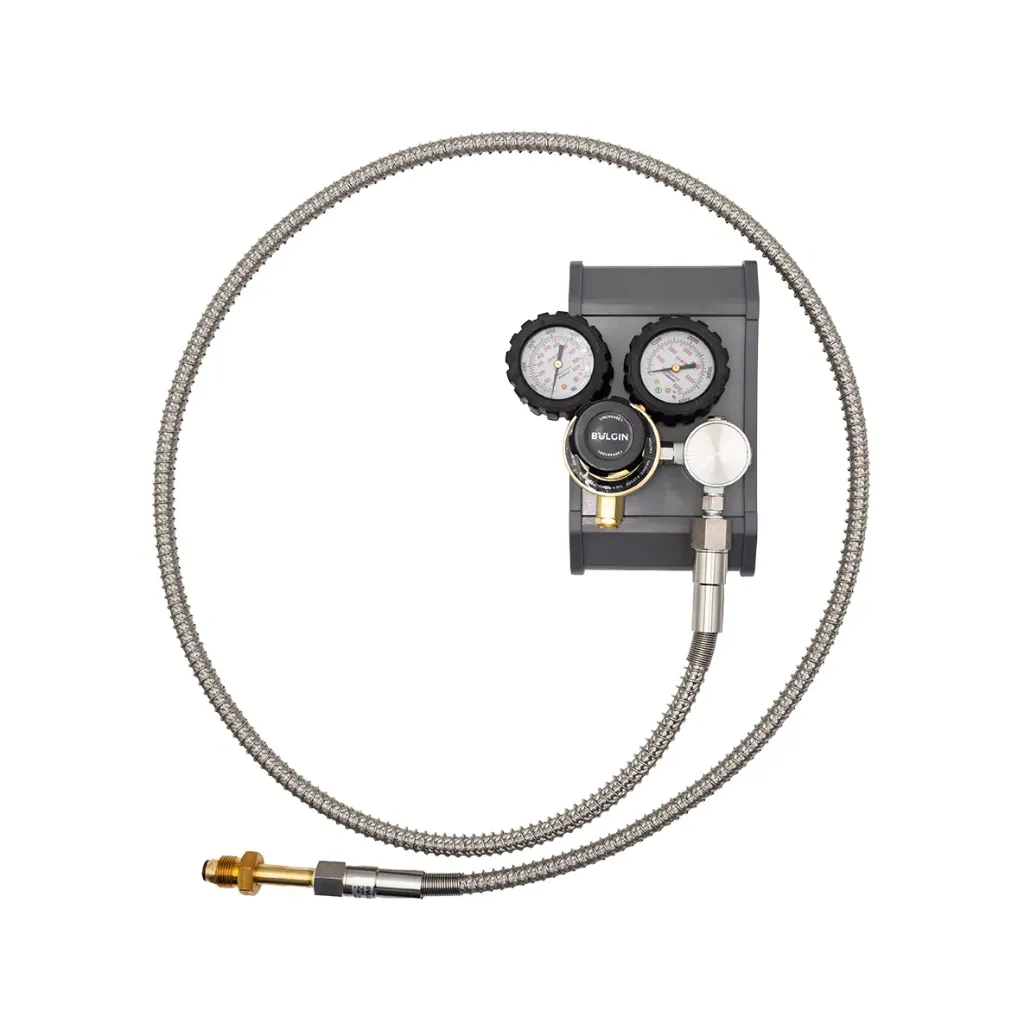

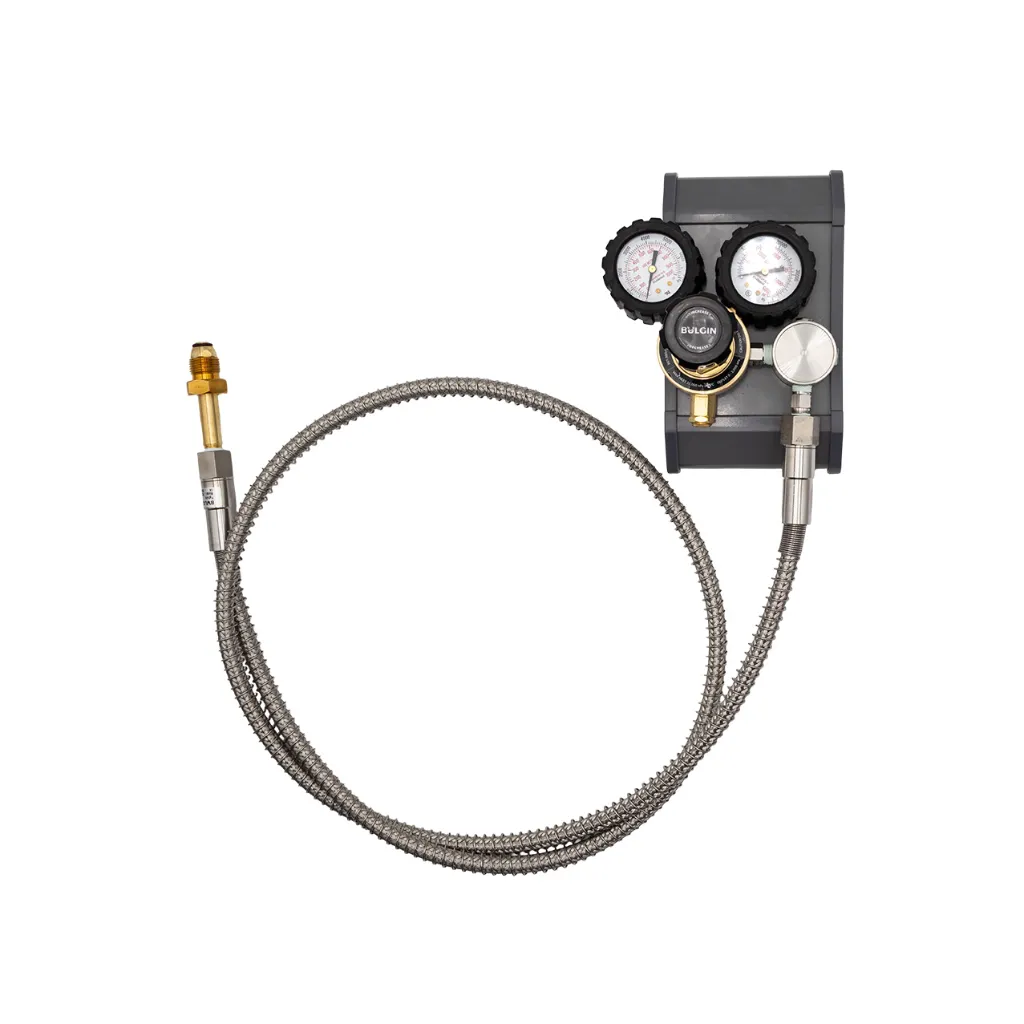

Bulgin® Oxygen Laser Panel 0-2,000kPa with 2 Metre Lead (Type 10) Outlet: 1/4" NPT Female

High Flow Oxygen Regulator & Wall Mount Panel Package — Laser Cutting Systems

Secure your gas supply and simplify cylinder changeovers with this regulator and wall mount panel package. A high pressure, single-stage piston regulator is permanently secured to a heavy-duty powder-coated aluminium panel — reducing equipment handling and keeping your workflow uninterrupted during cylinder changes.

Optimised for high-power fibre laser cutting (10 kW+) of mild steel, stainless steel, and aluminium; also suited to lab, calibration, and high-pressure gas control applications.

Key Features

• Wall-mounted panel eliminates handling and line stress during cylinder swaps
• High-pressure piston design for stable and precise control
• Durable brass body construction for strength and corrosion resistance
• Compatible with brass inlet stems
• Regulators include Gauge protectors for added durability Regulators have encapsulated seat and built in safety relief valve
• Smooth adjustment for consistent pressure delivery
• Designed for industrial and high-pressure applications

Technical Specifications

• Body Material: Brass
• Panel: Powder-coated Aluminium
• Regulator Type: Piston regulator
• Maximum Inlet Pressure: 32,000 kPa
• Outlet Pressure Range: 0 – 2,000 kPa
• Flow Rate: Up to approx. 120 m3/hr @ 5,000 kPa
• Ports: ¼” NPT (F)
• Application: High-pressure industrial and specialty gas control

Configuration Options

• Lead: 2 m standard, 3 m or custom on request
• Cylinder connection: Type 10
• Purge: Standard direct inlet, or optional inlet purge valve

Applications
