BULGIN Quick Connectors for
Technical Gases

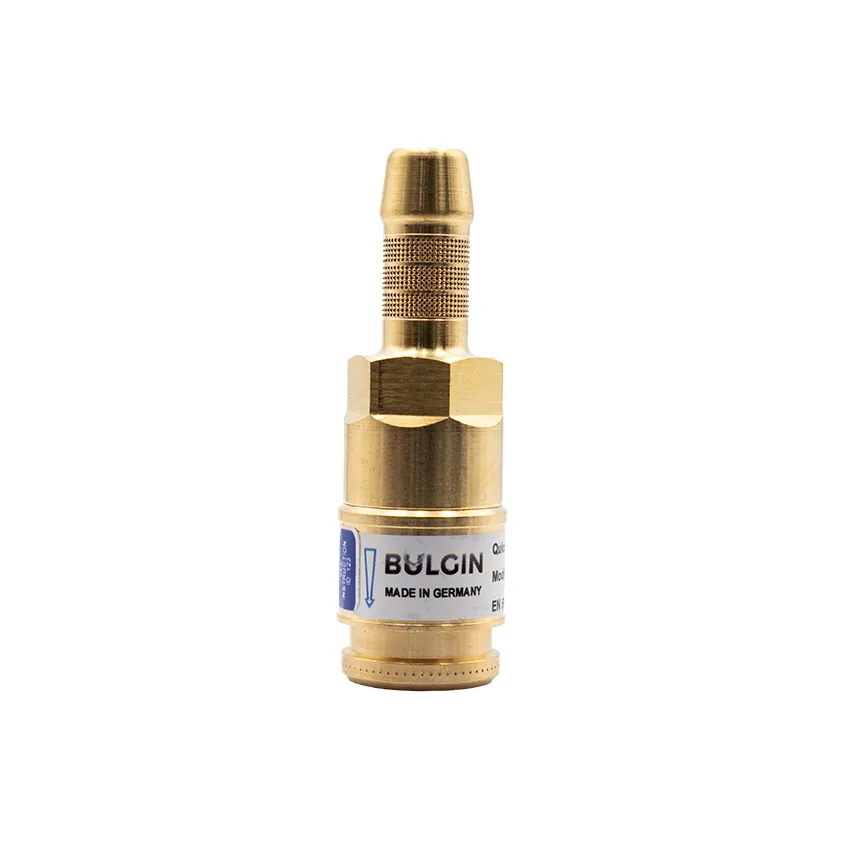

The Bulgin DKT-O Oxygen Quick Connector is a
German-engineered and manufactured safety device designed to deliver the
highest levels of safety, performance, and reliability in industrial gas applications.
Every Quick Action Coupler and Pin is 100% function tested
prior to leaving the factory. This rigorous quality assurance process provides
complete confidence in product performance, safety, and compliance.

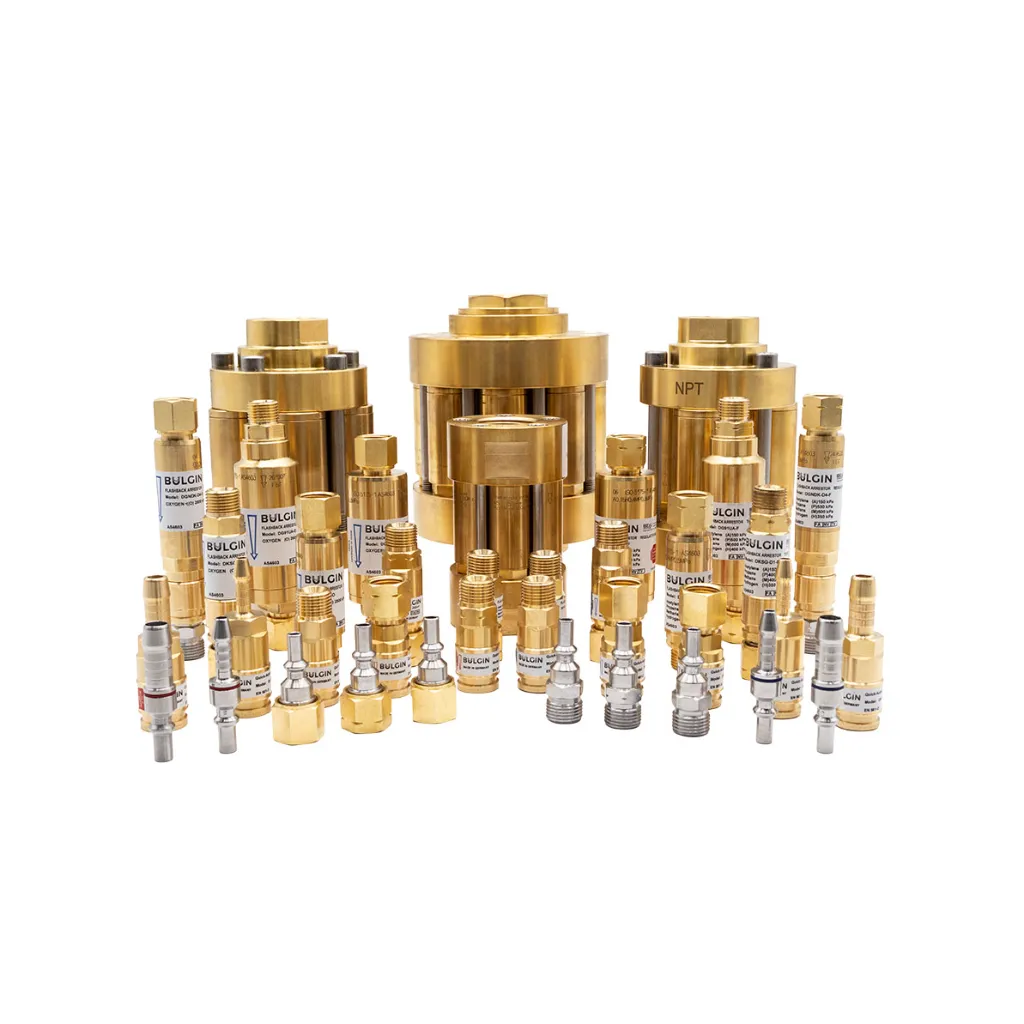

The Bulgin Flashback Arrestor range combines proven German
engineering, precision manufacturing, and comprehensive testing to deliver
dependable protection in demanding industrial environments.
Bulgin gas hose couplings (quick connectors) are suitable
for most technical gases (fuel gases) such as Acetylene, Hydrogen, Methane,
Natural Gas, Propane and Butane as well as Oxygen, Compressed air and Inert
gases.
The Bulgin gas quick-action couplings are quick and easy to
install on torches, regulators and inline. The Bulgin Quick-action coupler
range combines proven German engineering, precision manufacturing, and
comprehensive testing to deliver dependable protection in demanding industrial
environments.
Key Features
- Coupling
system according to EN 561 / ISO 7289 – worldwide compatible
- 100%
factory function tested and flame tested.
- Passed
an additional voluntary endurance test where 6000 cycles have been
performed under maximum working pressure (standard requires a minimum of
1000 cycles)
- Push
system for easy connection - minimized risk of an unintended
- Integrated
gas cut-off valve for shutting-off the gas flow automatically when
disconnected
- Optimized
gas flow for small pressure loss
- Stainless
steel coupling pins offer long life
Product Specifications
|
Parameter
|
Specification
|
|
Model
|
DKT-O
|
|
Gas Service
|
Oxygen
|
|
Installation Position
|
Inline
|
|
Inlet Connection
|
10mm Tail
|
|
Outlet Connection
|
Quick Action Coupler
|
|
Maximum Working Pressure
|
Oxygen 2.0 MPa (20
bar)
|
|
Operating Temperature
|
-20°C to +60°C
|
|
Construction Material
|
Brass body with stainless steel spring components
|
|
Standards
|
EN561, ISO7289
|
|
Testing
|
100% Function Tested
|
|
Country of Manufacture
|
Germany
|
|
Compatible with
|
Coupling Pin D1, D2 and D4
|
Integrated Safety Features
SV – Gas Shut-off Valve
Safe interruption of gas flow by automatic gas
cut-off when disconnecting.
