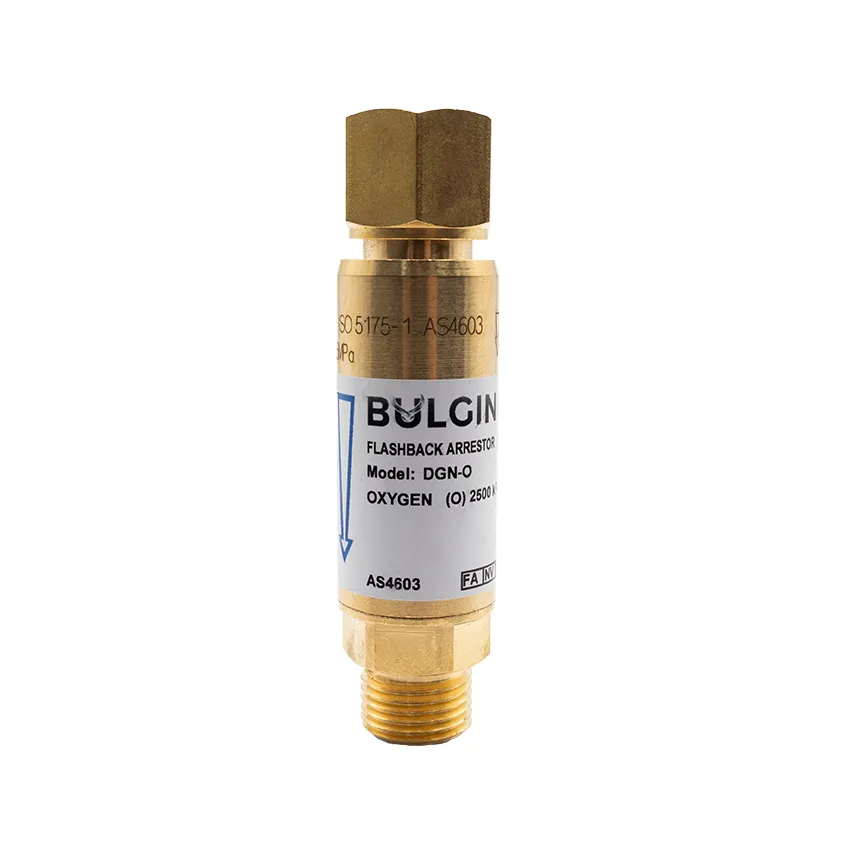

BULGIN Standard Flow Reg End Flashback Arrestors
The Bulgin DGN - O Standard Flow Flashback Arrestor is a
German-engineered and manufactured safety device designed to deliver the
highest levels of safety, performance, and reliability in oxy-fuel welding,
cutting, and heating applications.
Every flashback arrestor is 100% function tested prior to leaving the factory. All assembled devices are tested with a flashback test, a leak test and a gas non-return valve test. This rigorous quality assurance
process provides complete confidence in product performance, safety, and
compliance.

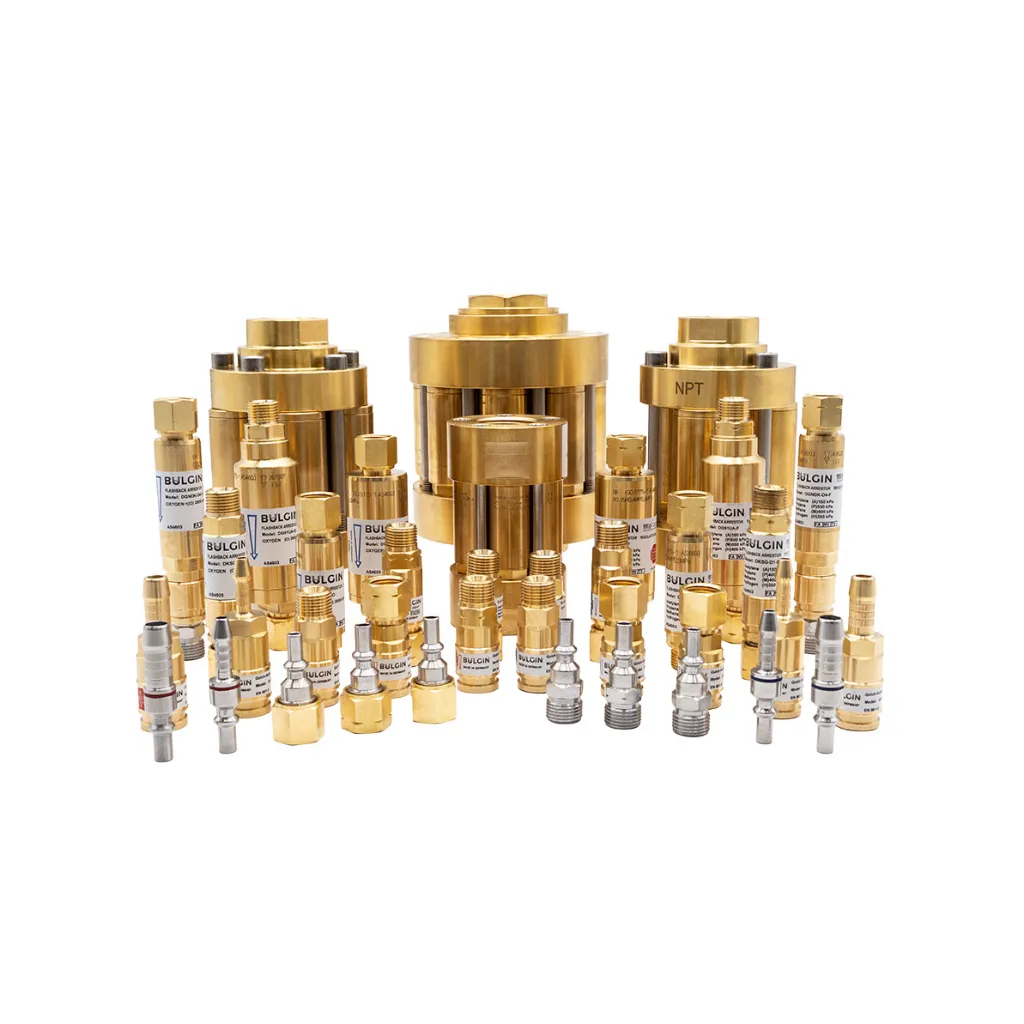

Flashback arrestors are one of the most critical safety
devices in any oxy-fuel system. The Bulgin Flashback Arrestor range combines
proven German engineering, precision manufacturing, and comprehensive testing
to deliver dependable protection in demanding industrial environments.
Key Benefits
- Prevents
dangerous reverse gas flow
- Stops
flashbacks before they can travel upstream
- Provides
automatic thermal shut-off protection
- Protects
internal safety components from contamination
- 100%
factory function tested and flame tested
- Suitable
for demanding industrial environments
- Complies
with EN ISO 5175-1 and AS 4603
Product Specifications
|
Parameter
|
Specification
|
|
Model
|
DGN-O
|
|
Gas Service
|
Oxygen
|
|
Installation Position
|
Reg End
|
|
Inlet Connection
|
5/8"-18 UNF RH Female
|
|
Outlet Connection
|
5/8"-18 UNF RH Male
|
|
Maximum Working Pressure
|
2.5 MPa (25 bar)
|
|
Operating Temperature
|
-20°C to +60°C
|
|
Cracking Pressure
|
50–70 mbar
|
|
Construction Material
|
Brass body with stainless steel spring components
|
|
Standards
|
AS 4603, EN ISO 5175-1
|
|
Testing
|
100% Function Tested & Flame Tested
|
|
Country of Manufacture
|
Germany
|
Integrated Safety Features
NV – Gas Non-Return Valve
Prevents reverse gas flow and the formation of dangerous
mixed-gas conditions within the system.
FA – Flame Arrestor
Extinguishes flashbacks before they can propagate upstream,
protecting regulators, hoses, and gas supply equipment.
TV – Temperature Sensitive Shut-Off Valve
Automatically interrupts gas flow if excessive temperatures
occur, providing additional protection during flashback incidents.
DF – Dust Filter
Protects critical internal safety components from
contamination, maintaining long-term performance and reliability.
Application
The DGN-O Standard Flow Flashback Arrestor is designed for
use in oxy-fuel operations including:
Welding
Suitable for material thicknesses up to 30 mm.
Cutting
Suitable for cutting applications up to 200 mm.
Heating
Suitable for heating applications up to 100 mm.
Available unpacked in bulk quantities to support
distributor stocking and high-volume requirements.
