BULGIN Quick Connectors for Technical Gases
The Bulgin D4 Inert Coupling Pin is a German-engineered and
manufactured safety device designed to deliver the highest levels of safety,
performance, and reliability in industrial gas applications.
Every Quick Action Coupler and Pin is 100% function tested
prior to leaving the factory. This rigorous quality assurance process provides
complete confidence in product performance, safety, and compliance.

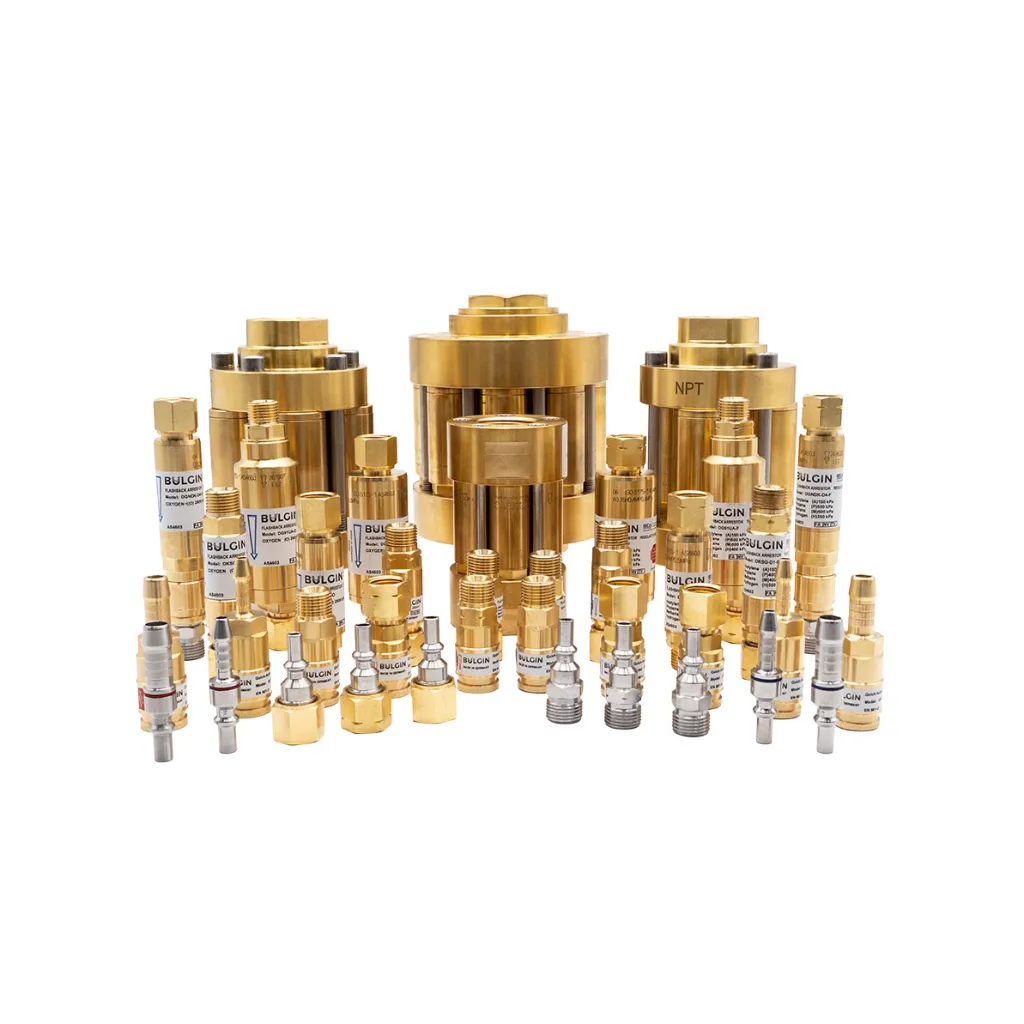

The Bulgin Flashback Arrestor range combines proven German
engineering, precision manufacturing, and comprehensive testing to deliver
dependable protection in demanding industrial environments.
Bulgin gas hose couplings (quick connectors) are suitable
for most technical gases (fuel gases) such as Acetylene, Hydrogen, Methane,
Natural Gas, Propane and Butane as well as Oxygen, Compressed air and Inert
gases.
The Bulgin gas quick-action couplings are quick and easy to
install on torches, regulators and inline. The Bulgin Quick-action coupler
range combines proven German engineering, precision manufacturing, and
comprehensive testing to deliver dependable protection in demanding industrial
environments.
Key Features
- Coupling
system according to EN 561 / ISO 7289 – worldwide compatible
- 100%
factory function tested and flame tested.
- Passed
an additional voluntary endurance test where 6000 cycles have been
performed under maximum working pressure (standard requires a minimum of
1000 cycles)
- Push
system for easy connection - minimized risk of an unintended
- Stainless
steel coupling pins offer long life
Product Specifications
|
Parameter
|
Specification
|
|
Model
|
D4
|
|
Gas Service
|
Inert gas
|
|
Installation Position
|
In-hose installation
|
|
Inlet Connection
|
Inert Coded Coupling Pin
|
|
Outlet Connection
|
5/8”-18 UNF M RH
|
|
Maximum Working Pressure
|
Inert Gas 2.0
MPa (20 bar)
(such as Nitrogen, Argon, Helium, Carbon Dioxide)
|
|
Operating Temperature
|
-20°C to +60°C
|
|
Construction Material
|
Full stainless-steel thread and coupling pin
|
|
Standards
|
EN561, ISO7289
|
|
Testing
|
100% Function Tested
|
|
Country of Manufacture
|
Germany |
Integrated Safety Features
Coded coupling pins to assist in avoiding the
mix-up of the products for different gas types.
